Location
Israel
Building Area
2100 m²
Industry
Cold Storage
Completion
2025

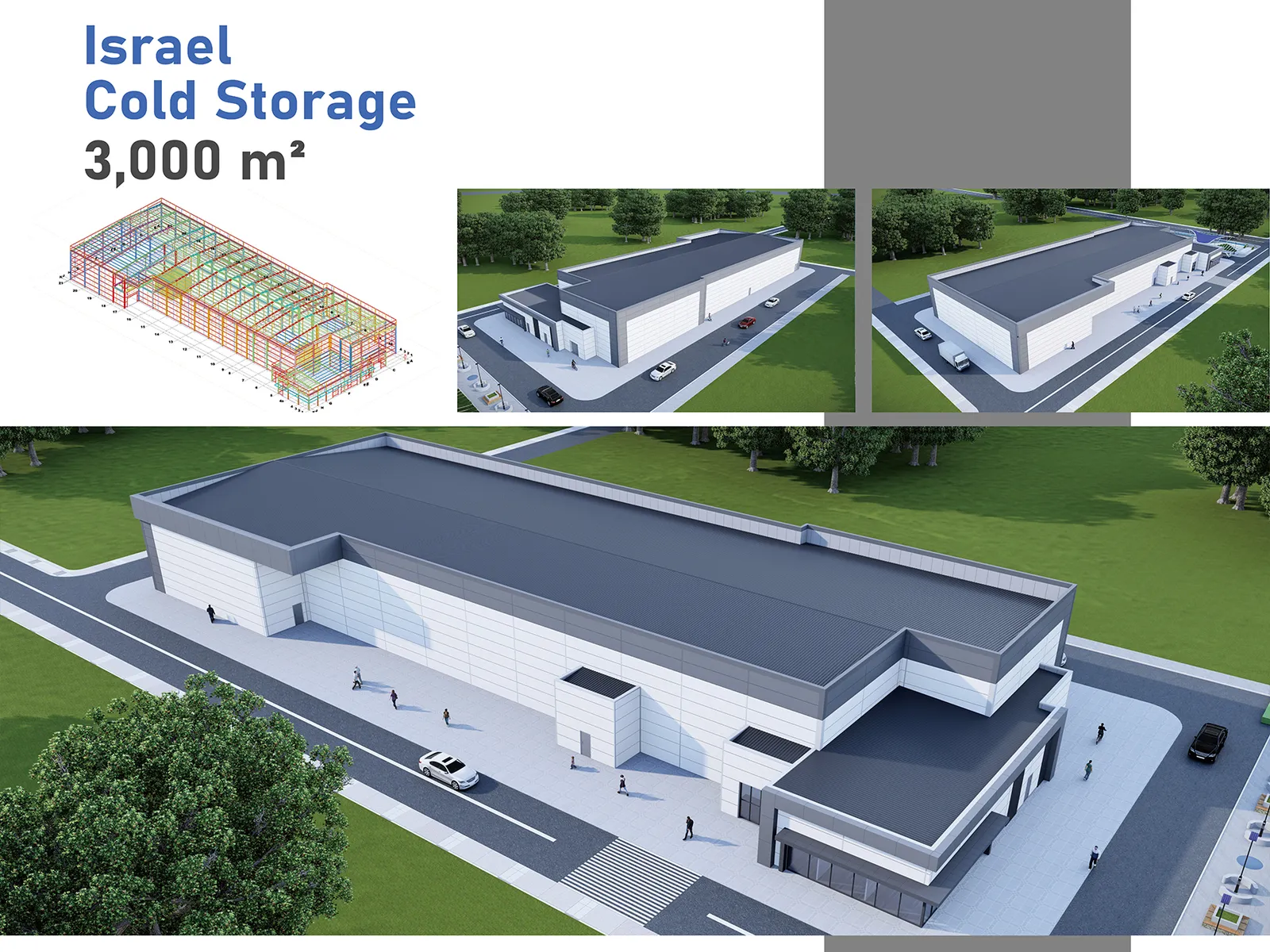

Project Overview
A thermally-engineered, column-free clear-span cold-storage facility delivered as a turnkey export package to Israel, built around a fire-resistant insulated panel envelope featuring detallado coordinado por BIM, ingeniería de viento específica para la región, and engineered for resilient long-term performance on site.
Project Highlights
Overall dimensions: 86.7m × 34.7m × 10.0m
High-performance insulated envelope sized for refrigerated operations
Vapour-tight panel jointing for stable internal temperatures
Insulated wall and roof sandwich panels for minimal heat ingress
Layout coordinated for cold-room partitions and dock seals
Wind-rated structural design for the local climate
Corrosion-protected steel members with galvanised or hot-dipped finishing
Total area: 2100 m²
Project Timeline
Design & Engineering
Environmental analysis, structural design, MEP coordination, 3D Tekla BIM detailing
Steel Fabrication
Precision fabrication with zero-defect welding
Shipping & Logistics
Sea freight to Ashdod port, Israel
On-Site Erection
Steel erection, panel cladding, MEP integration

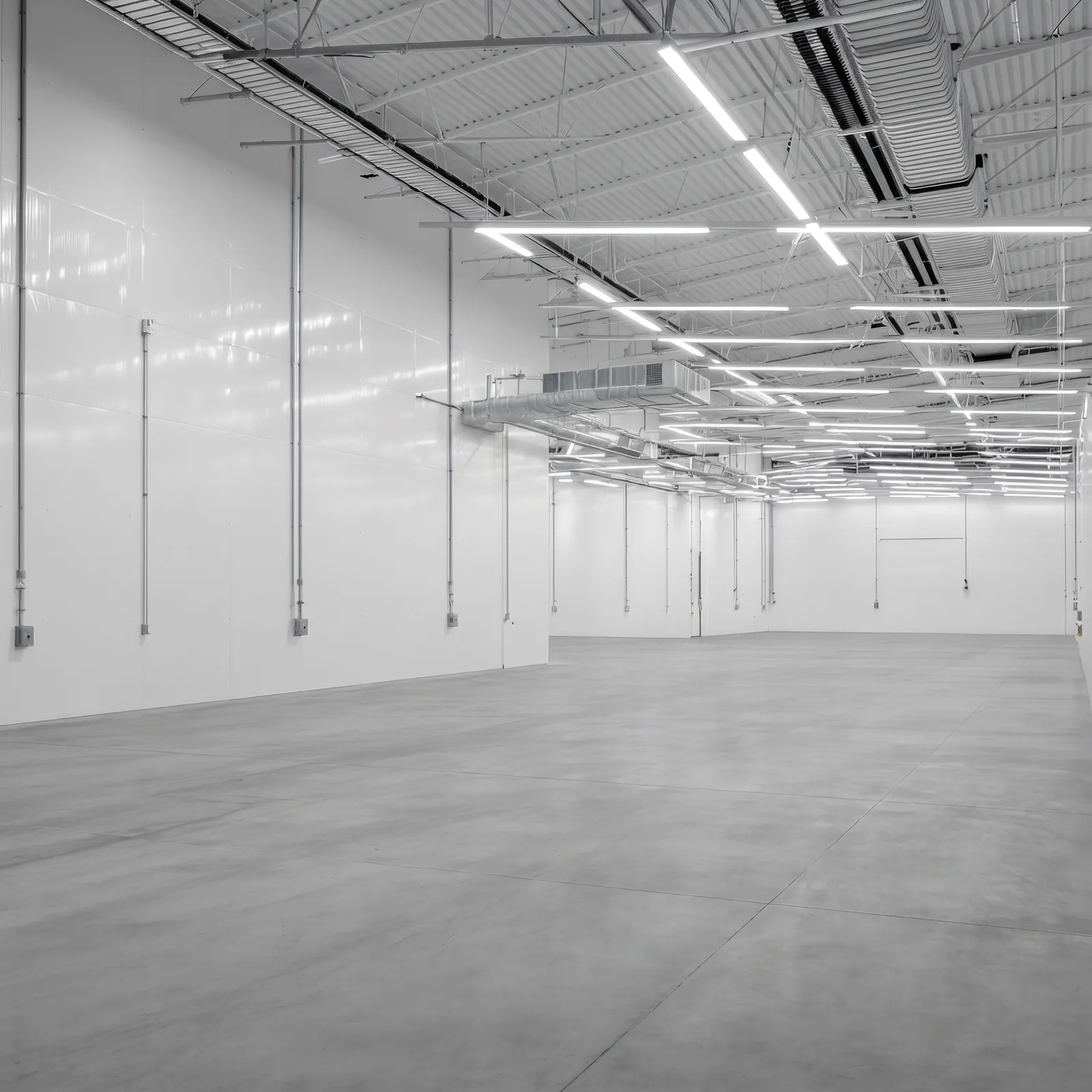

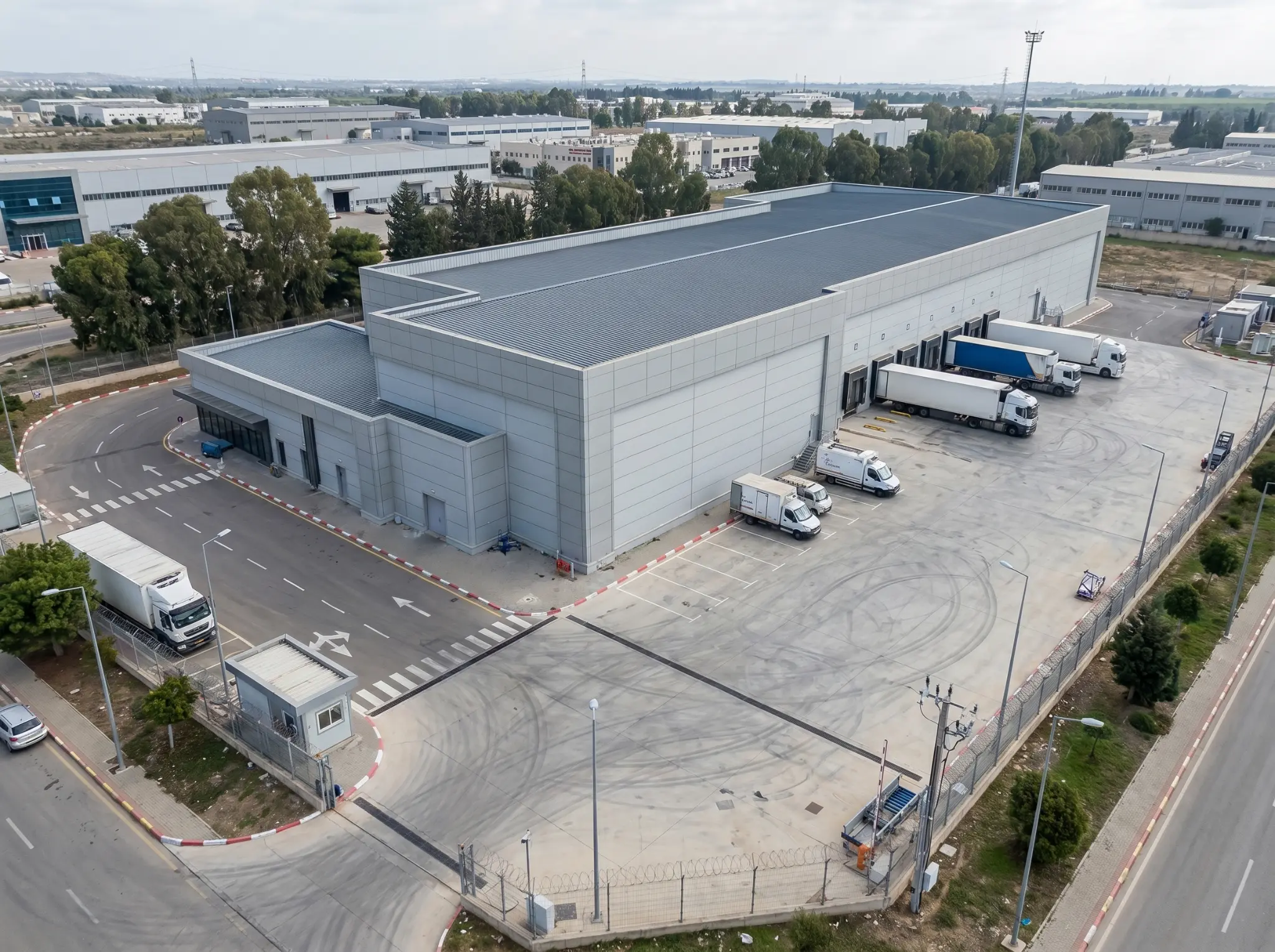

Project Gallery
View Full Size
View Full Size
View Full Size
Technical Specifications
Structural System
Portal Frame
Dimensions
86.7m × 34.7m × 10.0m
Wall System
50mm Hybrid Sandwich Panel (0.5mm PE Steel Sheet); 100mm PIR Sandwich Panel (0.5mm PE Steel Sheet)
Roof System
50mm Hybrid Sandwich Panel (0.5mm PE Steel Sheet); 100mm PIR Sandwich Panel (0.5mm PE Steel Sheet)
Design Load
Wind Load 50 Mph, No Snow Load
Primary Steel
Q355B (= S355JR / ASTM A572 Gr.50, Painted)
Secondary Steel
Q235B (= S235JR / ASTM A36, Galvanized)
Project Information
Location
Israel
Building Type
Cold Storage
Area
2100 m²
Completion Year
2025
Industry
Cold Storage
