Location
Croatia
Building Area
378 m²
Industry
Automotive & Retail
Completion
2025

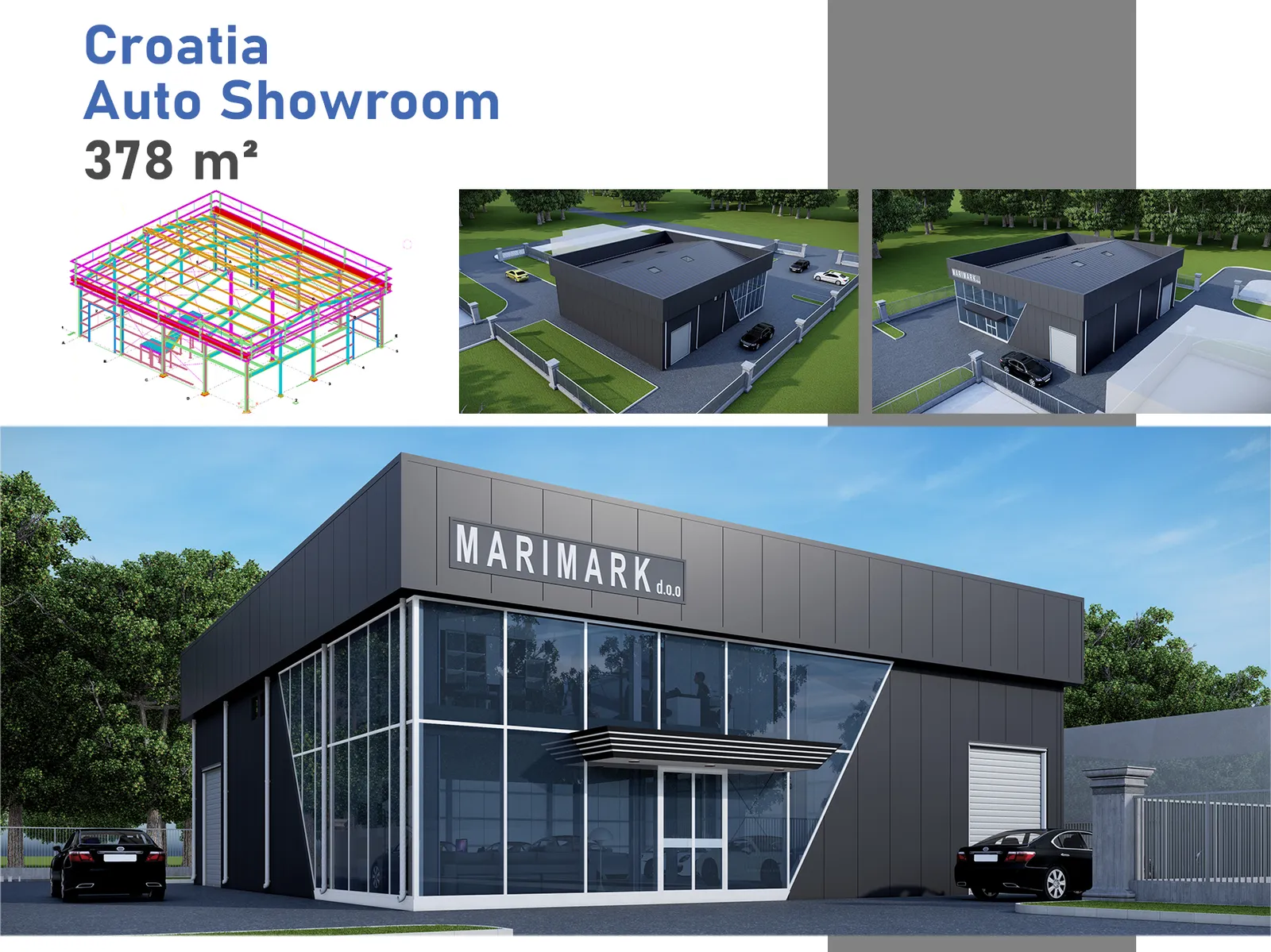

Project Overview
A showroom-grade, column-free clear-span automotive showroom delivered as a turnkey export package to Croatia, built around a thermally insulated sandwich-panel envelope featuring architectural glazing, detallado coordinado por BIM, and engineered for resilient long-term performance on site.
Project Highlights
Overall dimensions: 19.8m × 16.8m × 7.4m
Architectural glass curtain wall maximising vehicle display visibility
Premium retail-grade interior atmosphere
Compact, high-impact footprint suited to flagship retail
Code-compliant structural framework for public-facing occupancy
Thermally insulated sandwich-panel envelope
Wind-rated structural design for the local climate
Total area: 378 m²
Project Timeline
Design & Engineering
Environmental analysis, structural design, MEP coordination, 3D Tekla BIM detailing
Steel Fabrication
Precision fabrication with zero-defect welding
Shipping & Logistics
Sea freight to Rijeka port, Croatia
On-Site Erection
Steel erection, panel cladding, MEP integration

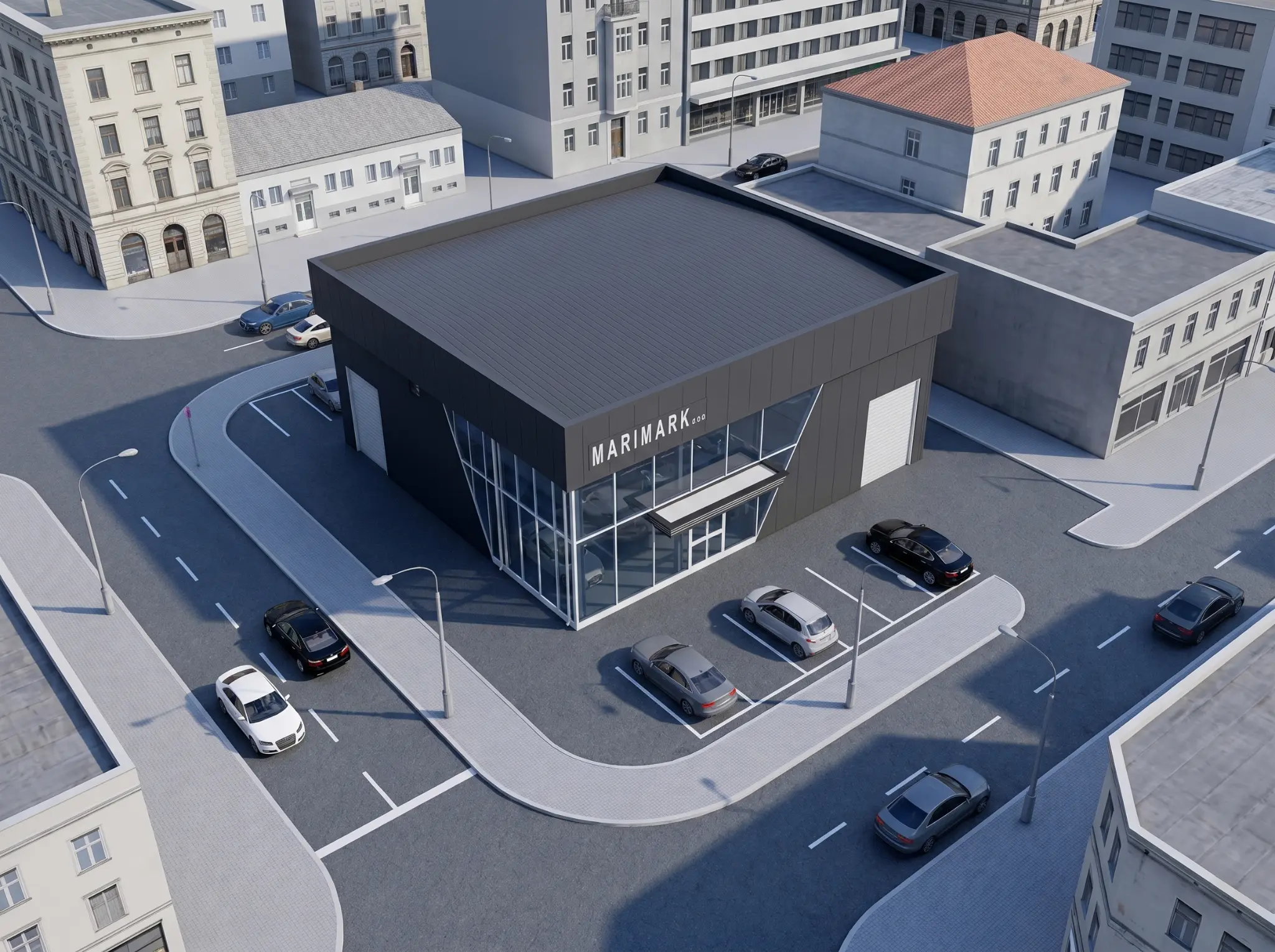

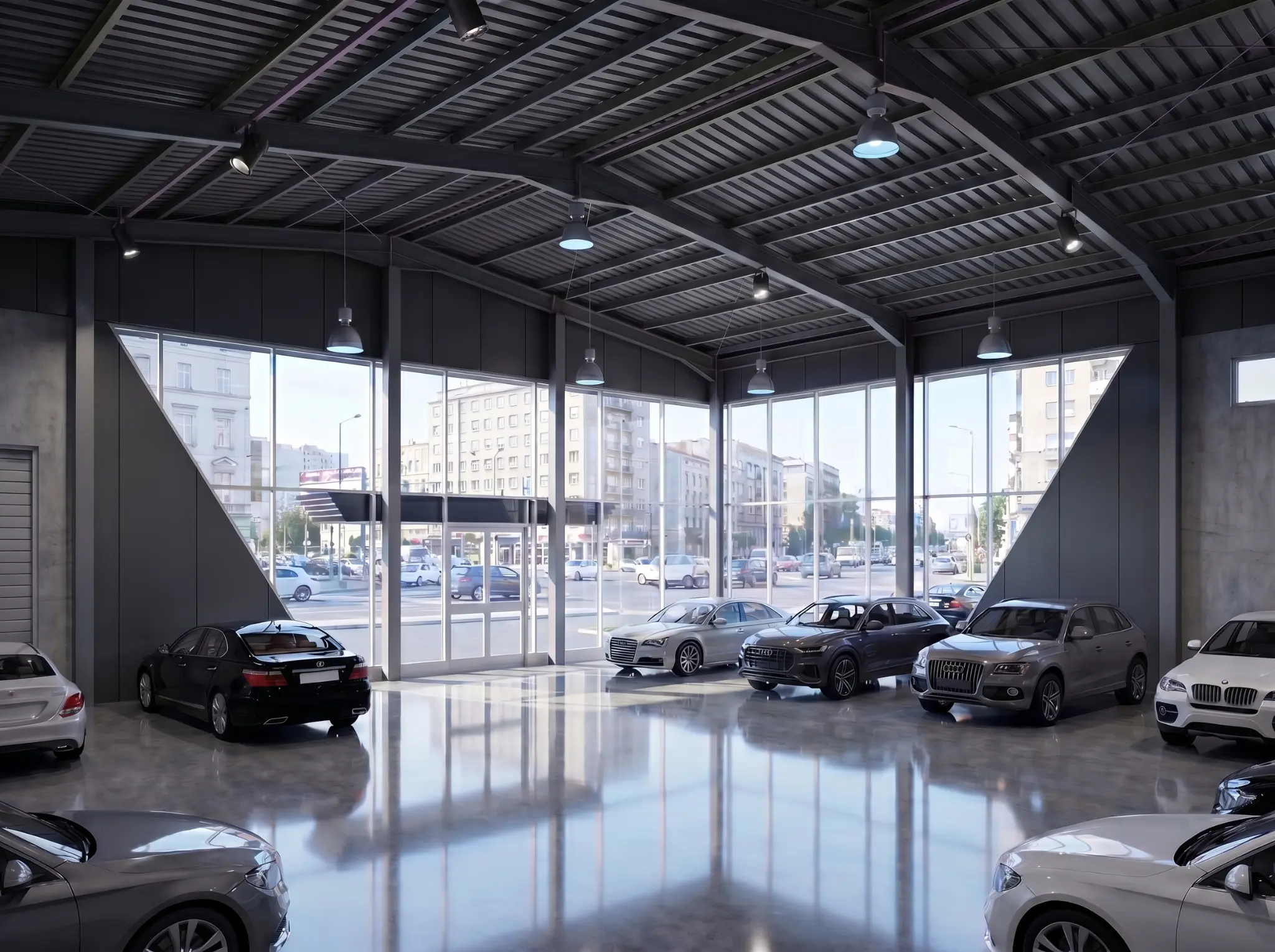

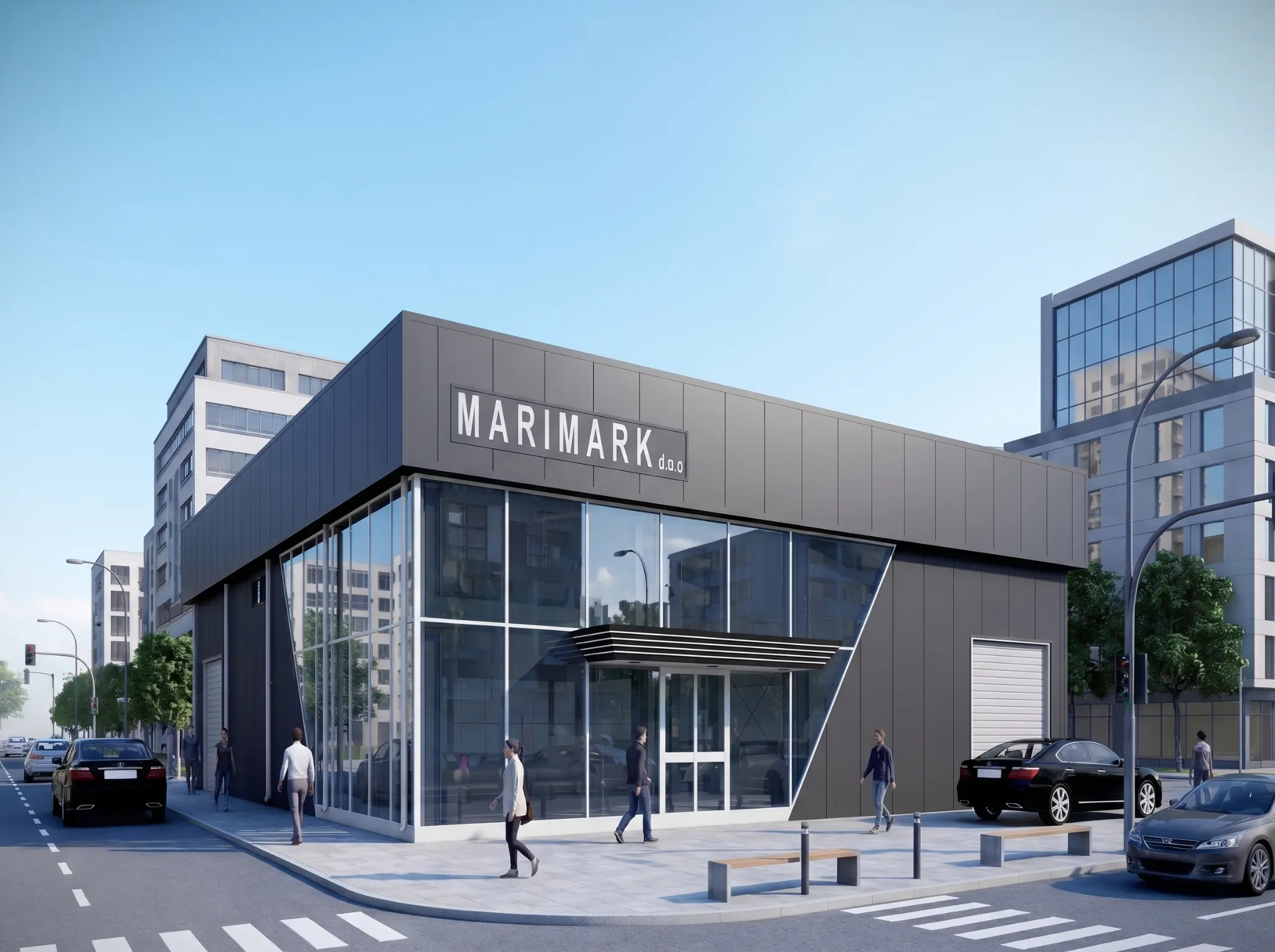

Project Gallery
View Full Size
View Full Size
View Full Size
View Full Size
Technical Specifications
Structural System
Portal Frame
Dimensions
19.8m × 16.8m × 7.4m
Wall System
50mm PU Sandwich Panel (0.5mm PE Steel Sheet)
Roof System
50mm PU Sandwich Panel (0.5mm PE Steel Sheet)
Design Load
Wind Load ~64 Mph, Snow Load 1.0 KN/m²
Primary Steel
Q355B (= S355JR / ASTM A572 Gr.50, Painted)
Secondary Steel
Q235B (= S235JR / ASTM A36, Galvanized)
Project Information
Location
Croatia
Building Type
Auto Showroom
Area
378 m²
Completion Year
2025
Industry
Automotive & Retail
