Warehouse & Logistics2025
Argentina, Storage Building, 2,100 m²
ArgentinaStorage Building2100 m²
Location
Argentina
Building Area
2100 m²
Industry
Warehouse & Logistics
Completion
2025
Project Overview
A wide-span, column-free clear-span industrial storage building delivered as a turnkey export package to Argentina, built around an insulated sandwich-panel envelope accented with architectural glazing featuring detallado coordinado por BIM, ingeniería de viento específica para la región, and engineered for resilient long-term performance on site.
Project Highlights
Overall dimensions: 54m × 39m × 12m
Column-free clear-span interior for unobstructed storage and material flow
Generous clear height engineered for racking and forklift operations
Weather-tight, durable building envelope
Wide access bays sized for industrial loading operations
High-wind structural design suited to regional weather extremes
Corrosion-protected steel members with galvanised or hot-dipped finishing
Total area: 2100 m²
Project Timeline
Design & Engineering
Environmental analysis, structural design, MEP coordination, 3D Tekla BIM detailing
Steel Fabrication
Precision fabrication with zero-defect welding
Shipping & Logistics
Sea freight to Buenos Aires port, Argentina
On-Site Erection
Steel erection, panel cladding, MEP integration

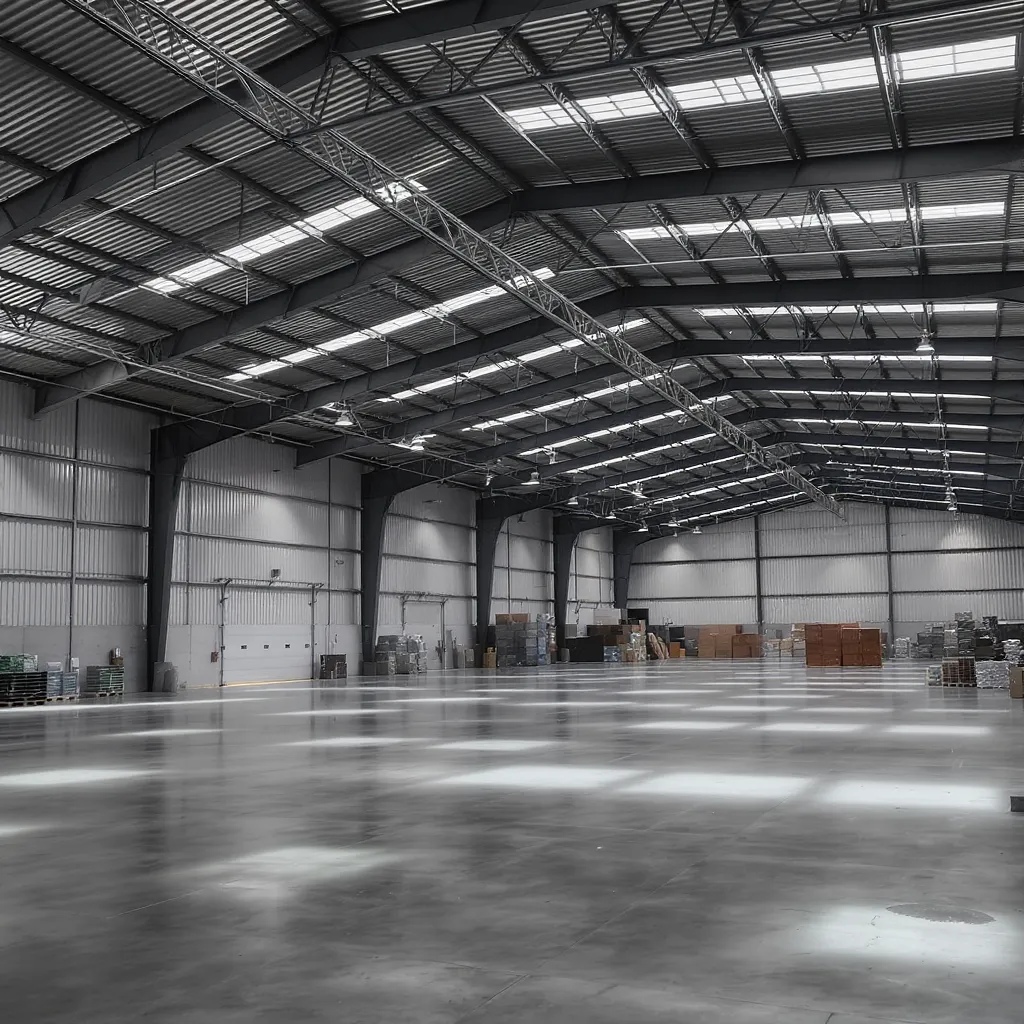

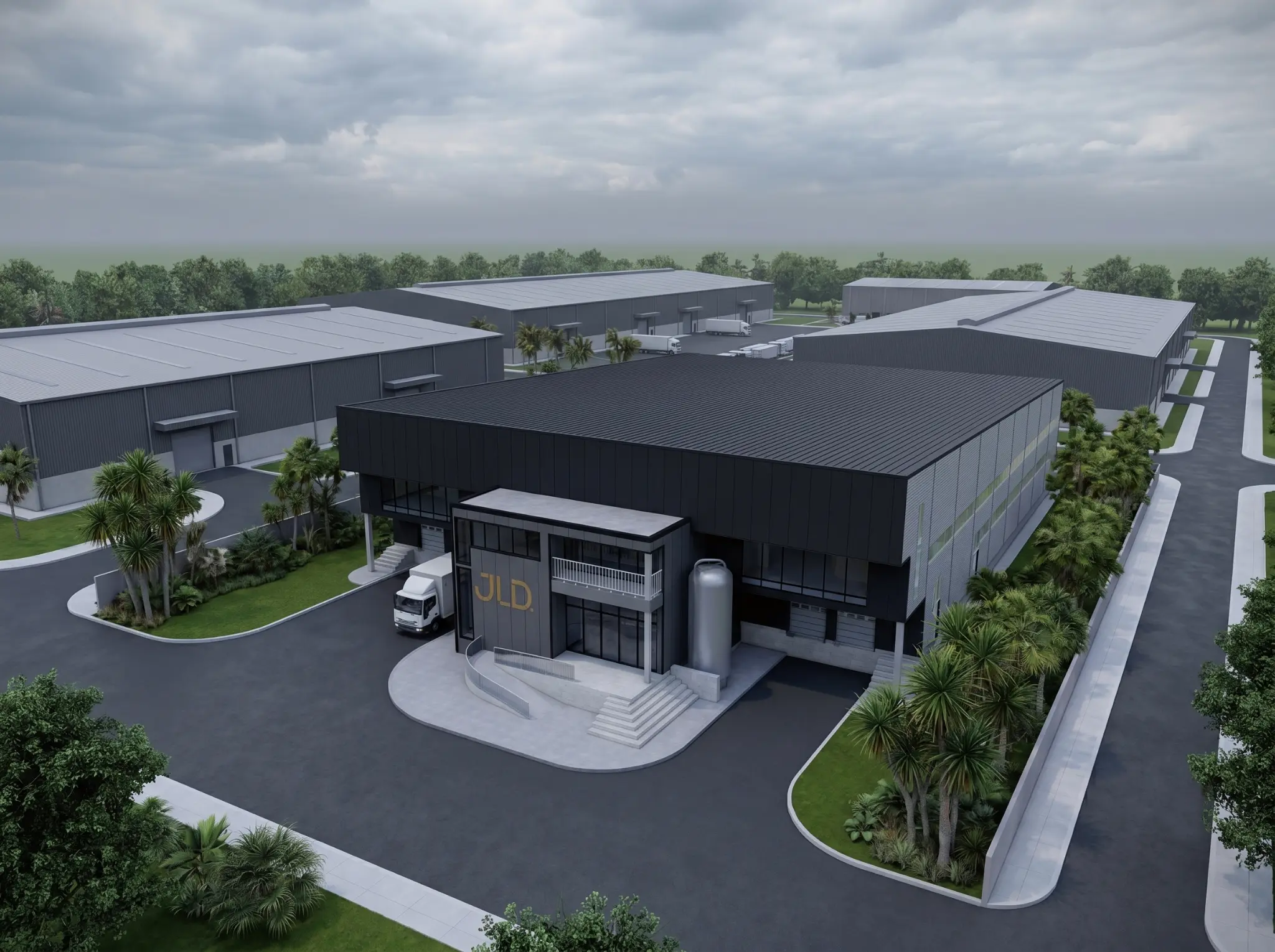

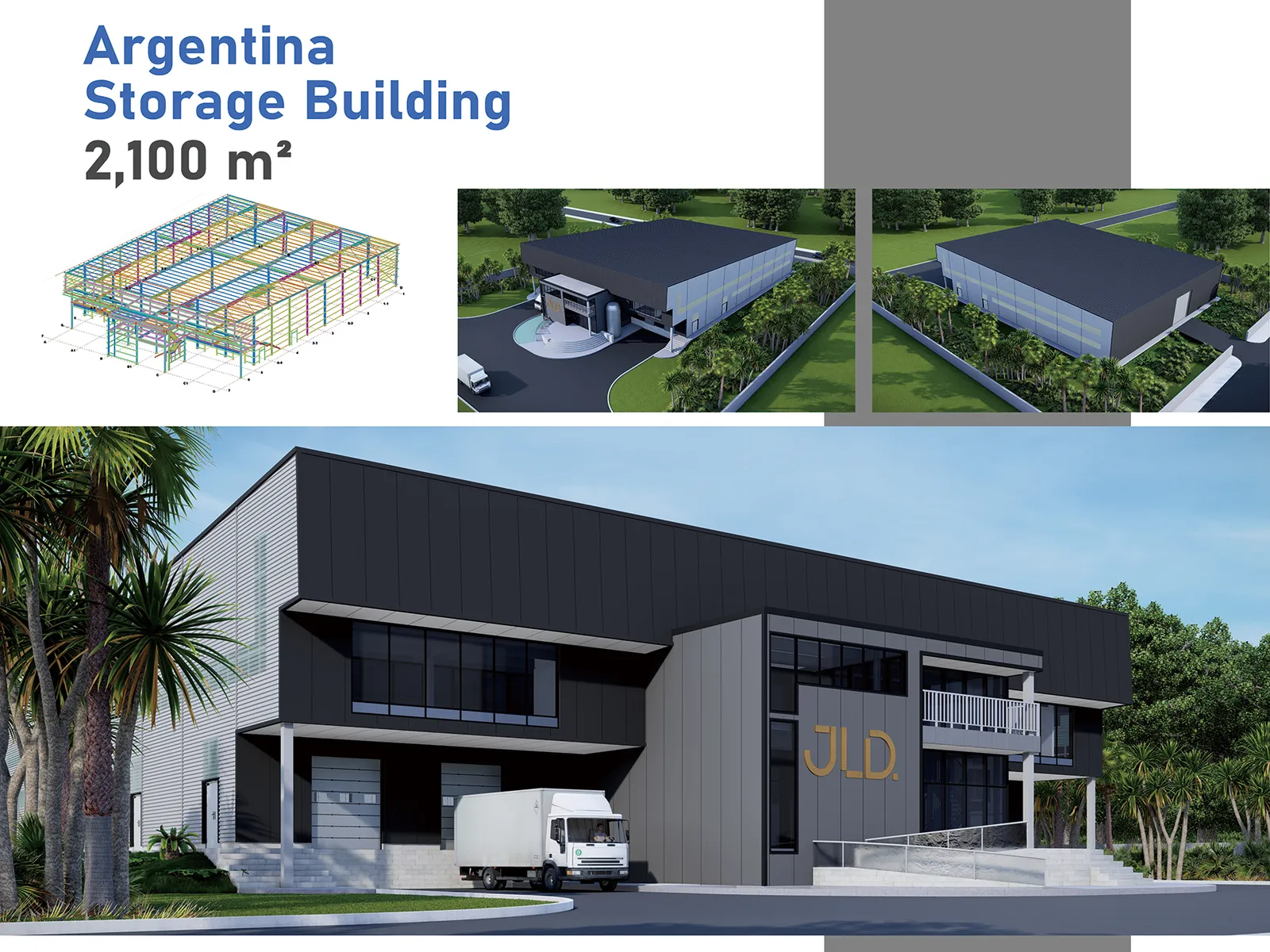

Project Gallery
View Full Size
View Full Size
View Full Size
Technical Specifications
Structural System
Portal Frame
Dimensions
54m × 39m × 12m
Wall System
50mm PU Sandwich Panel (0.5mm PE Steel Sheet), Glass Curtain Wall
Roof System
50mm PU Sandwich Panel (0.5mm PE Steel Sheet), Glass Curtain Wall
Design Load
Wind Load 102 Mph, No Snow Load
Primary Steel
Q355B (= S355JR / ASTM A572 Gr.50, Painted)
Secondary Steel
Q235B (= S235JR / ASTM A36, Galvanized)
Project Information
Location
Argentina
Building Type
Storage Building
Area
2100 m²
Completion Year
2025
Industry
Warehouse & Logistics
