Warehouse & Logistics2026
Dominican Republic, Logistics Center, 10,000 m²
Dominican RepublicLogistics Center10000 m²
Location
Dominican Republic
Building Area
10000 m²
Industry
Warehouse & Logistics
Completion
2026
Project Overview
A high-bay, column-free clear-span logistics & distribution facility delivered as a turnkey export package to Dominican Republic, built around a fire-resistant insulated panel envelope featuring clean parapet rooflines, detallado coordinado por BIM, and engineered for resilient long-term performance on site.
Project Highlights
Overall dimensions: 142.8m × 70m × 12.5m
Column-free clear-span interior optimised for racking and forklift circulation
High-bay configuration with generous internal clear height
Wide truck-access bays for trailer ingress and egress
Robust industrial flooring zones and loading-dock interface ready
Fire-resistant insulated panel envelope
Hurricane-grade lateral resilience engineered for extreme coastal wind exposure
Total area: 10000 m²
Project Timeline
Design & Engineering
Environmental analysis, structural design, MEP coordination, 3D Tekla BIM detailing
Steel Fabrication
Precision fabrication with zero-defect welding
Shipping & Logistics
Sea freight to Haina port, Dominican Republic
On-Site Erection
Steel erection, panel cladding, MEP integration

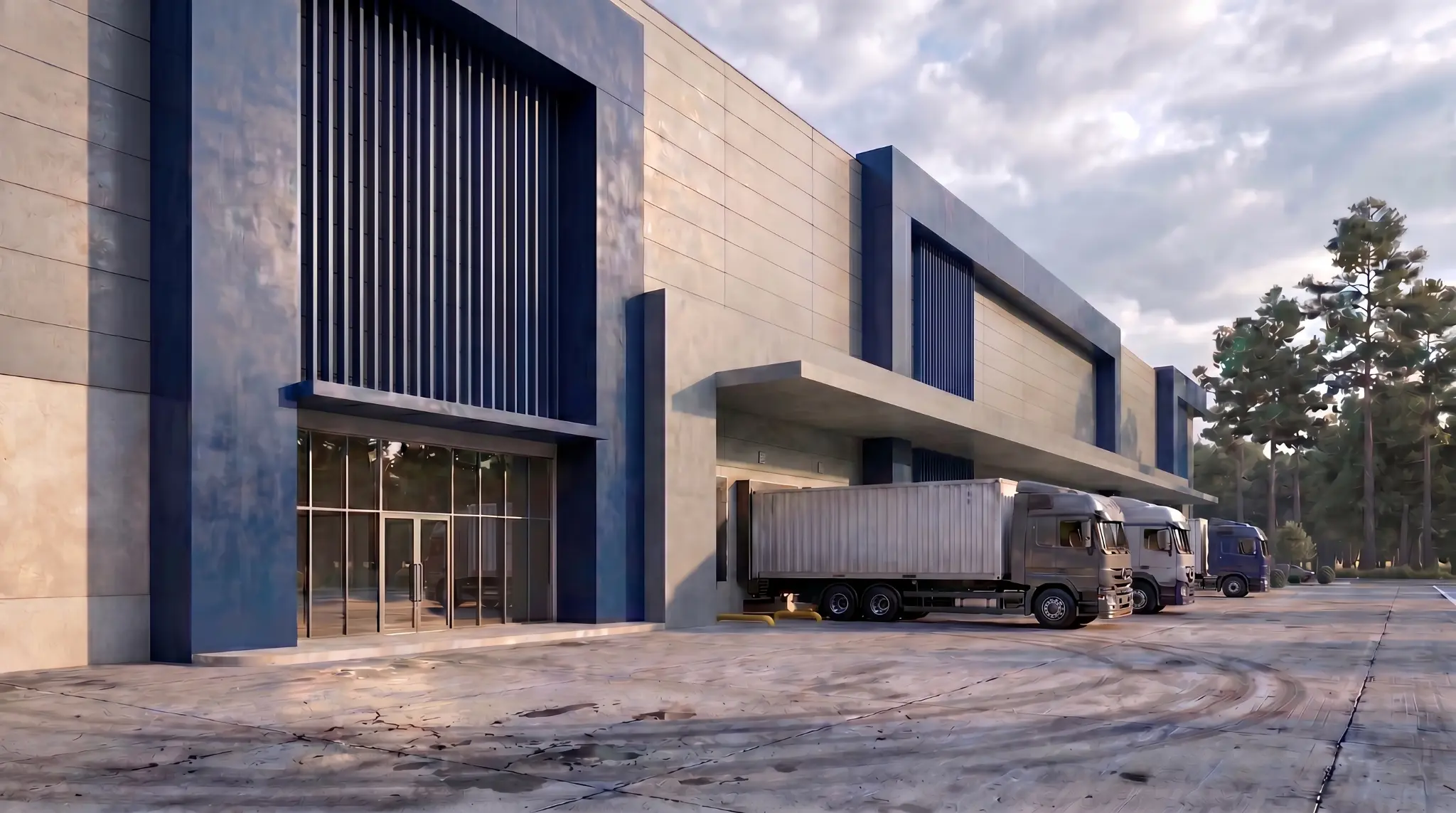

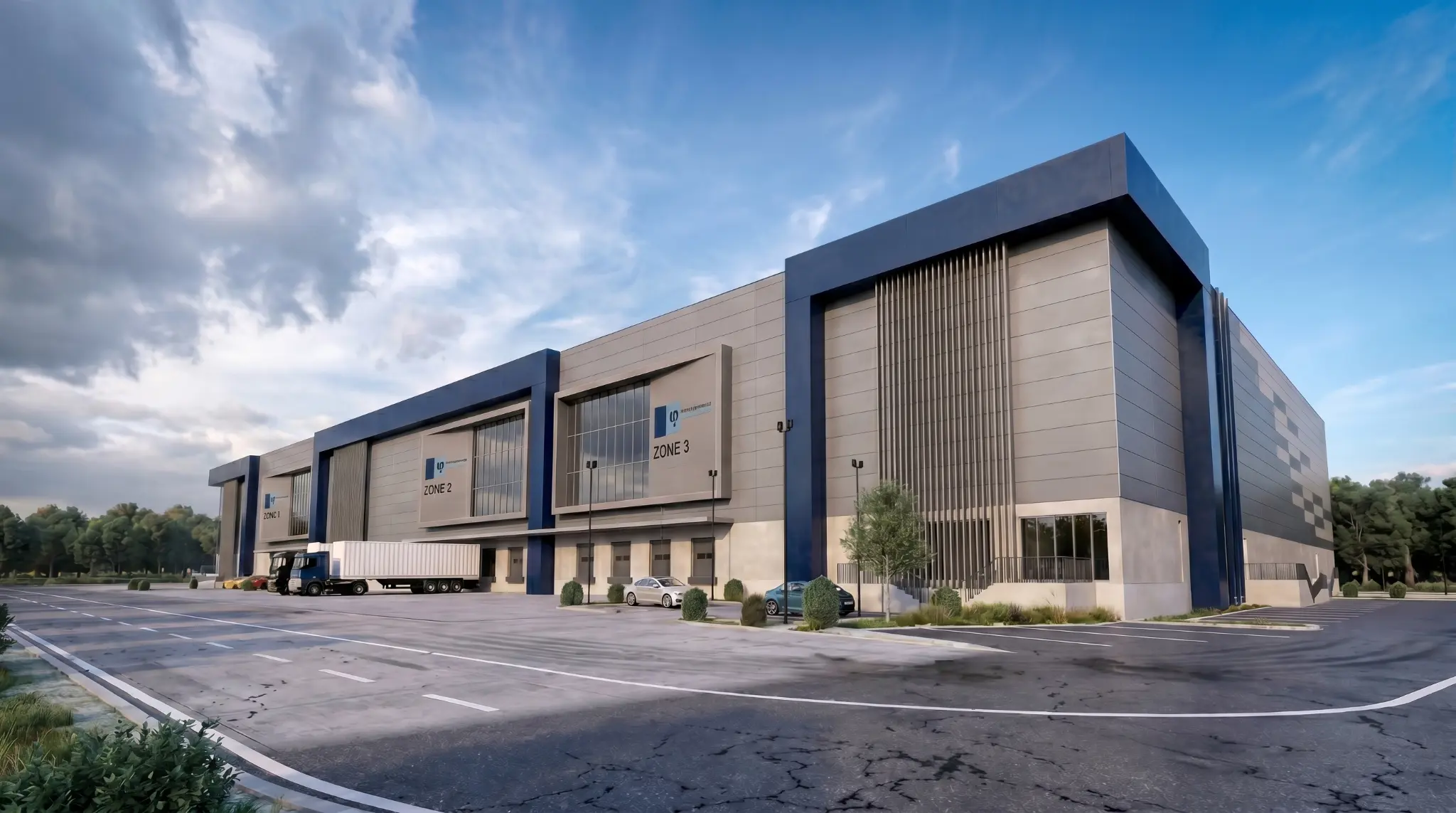

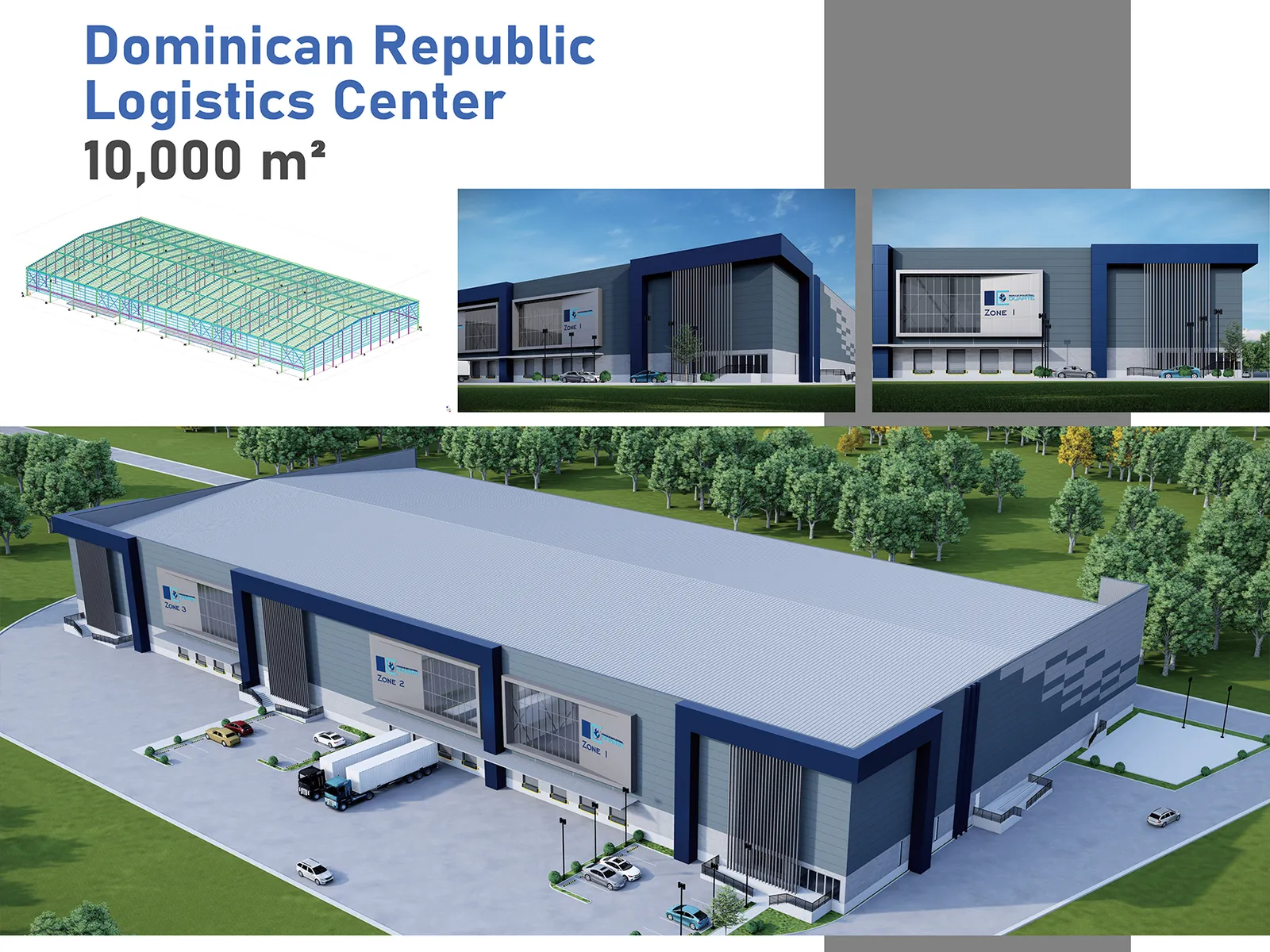

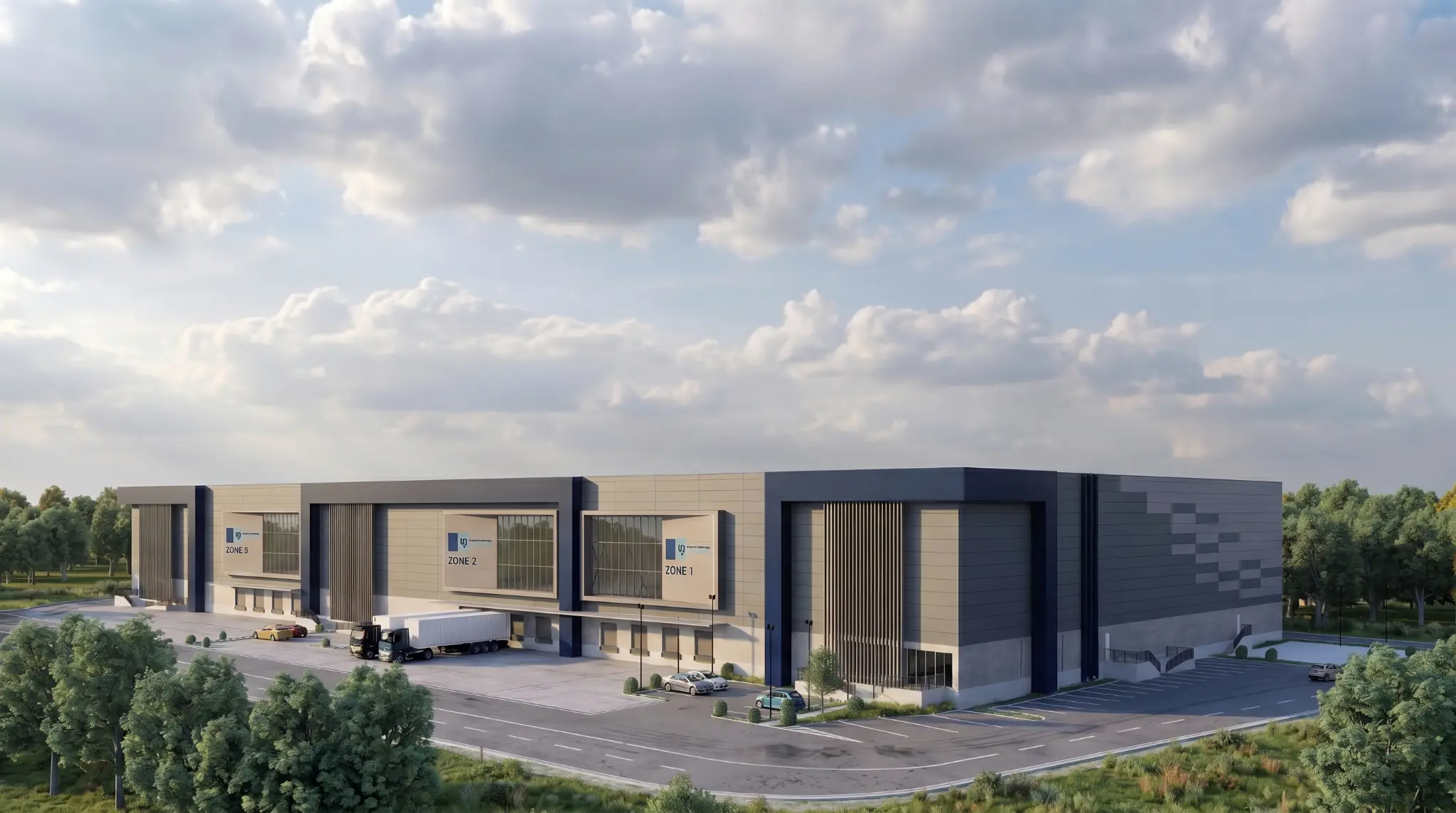

Project Gallery
View Full Size
View Full Size
View Full Size
View Full Size
Technical Specifications
Structural System
Portal Frame
Dimensions
142.8m × 70m × 12.5m
Wall System
0.5mm PVDF Single-skin Steel Sheet
Roof System
60mm PIR Sandwich Panel (0.6mm PVDF Steel Sheet)
Design Load
Wind Load 180 Mph, No Snow Load
Primary Steel
Q355B (= S355JR / ASTM A572 Gr.50, Painted)
Secondary Steel
Q235B (= S235JR / ASTM A36, Painted)
Project Information
Location
Dominican Republic
Building Type
Logistics Center
Area
10000 m²
Completion Year
2026
Industry
Warehouse & Logistics
