Location
USA
Building Area
578 m²
Industry
Warehouse & Logistics
Completion
2025
Project Overview

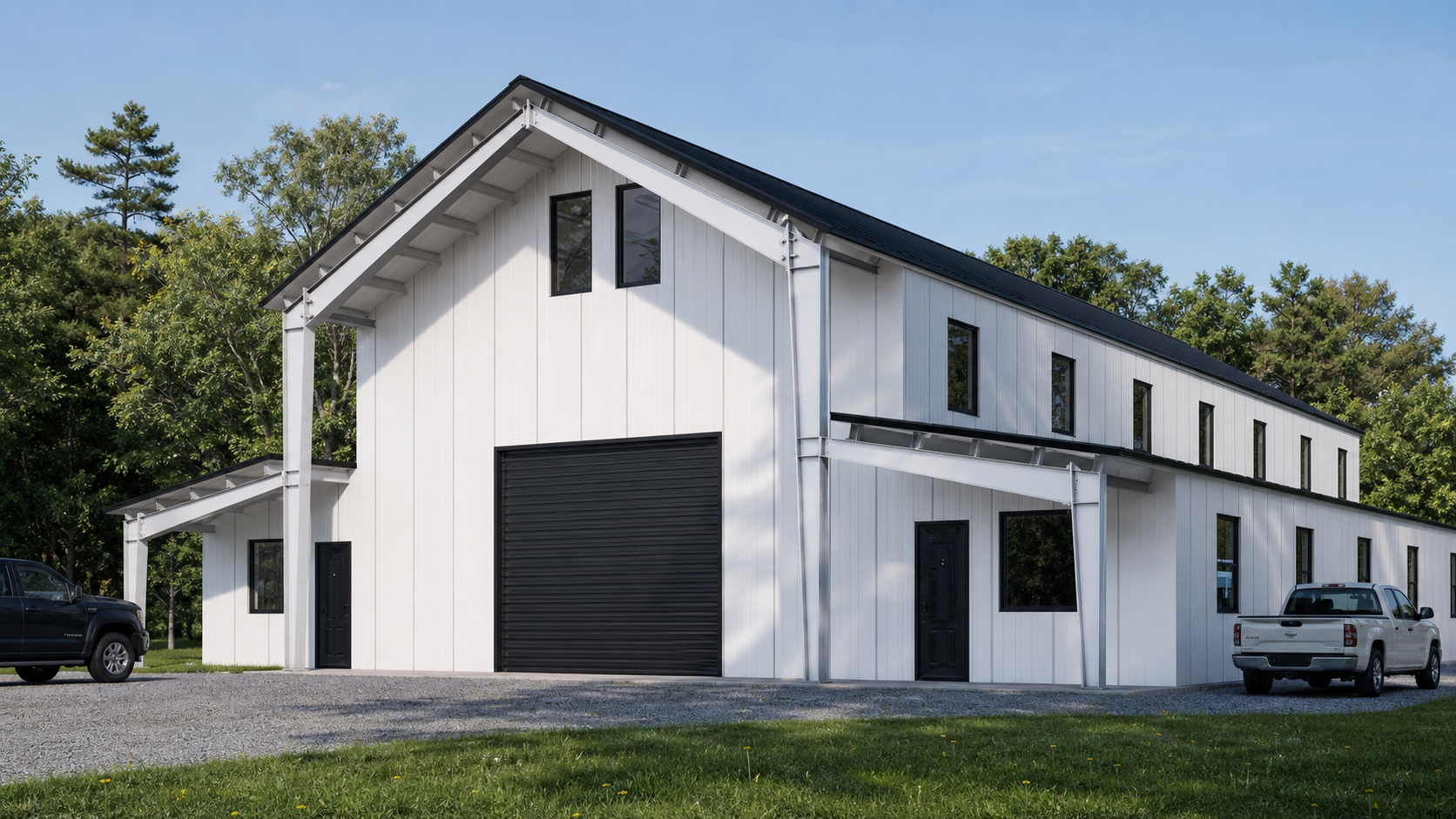

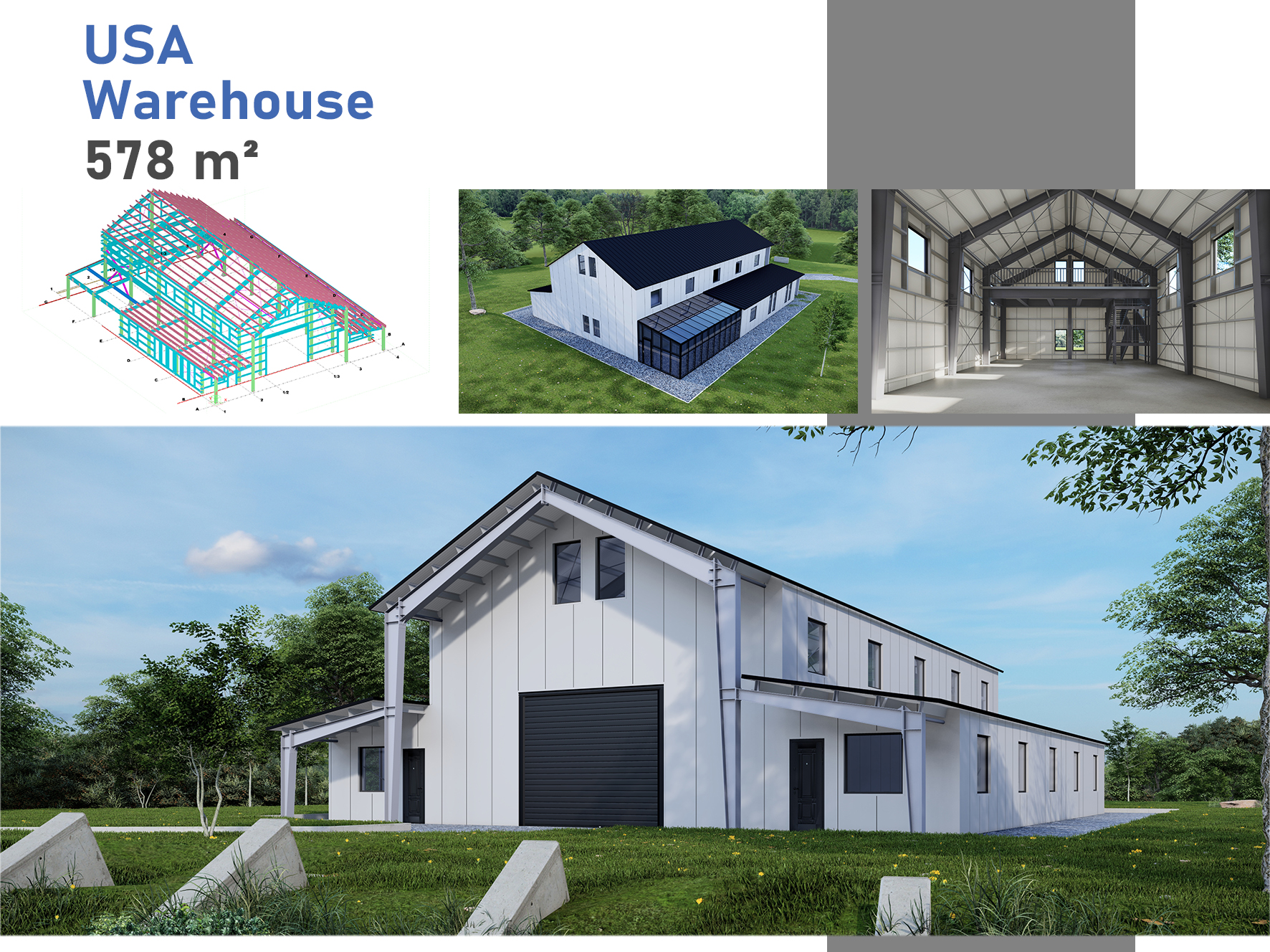

A compact industrial warehouse delivered as a turnkey export package to USA, built around a single-skin steel sheet envelope with selected tempered-glass roof and wall areas, mezzanine deck coordination, and heavy snow-load structural capacity.
Project Highlights
Clear-span warehouse footprint for storage and service operations
Single-skin PPGI roof and wall cladding for fast erection

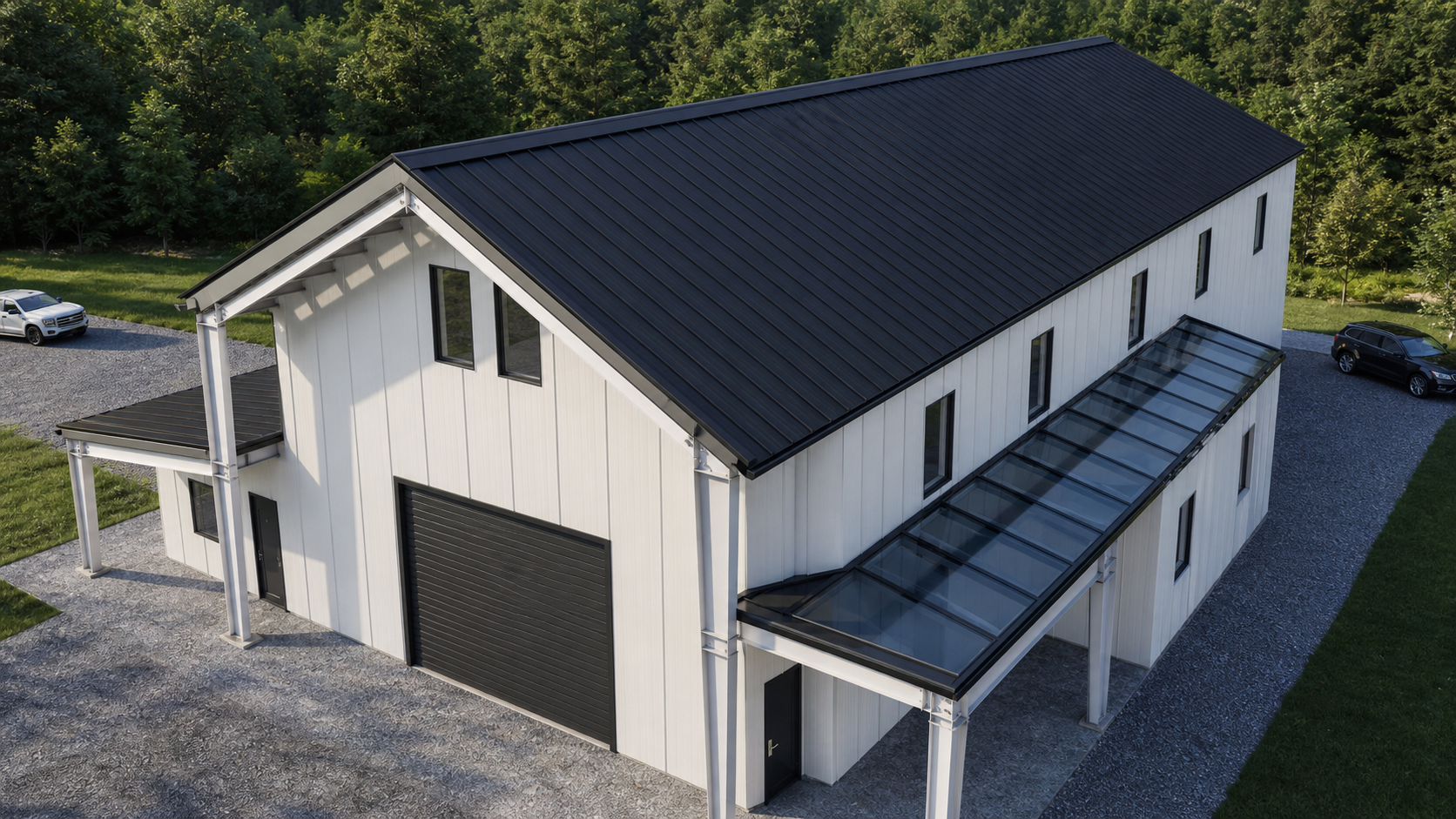

Tempered-glass roof and wall areas for daylight and frontage

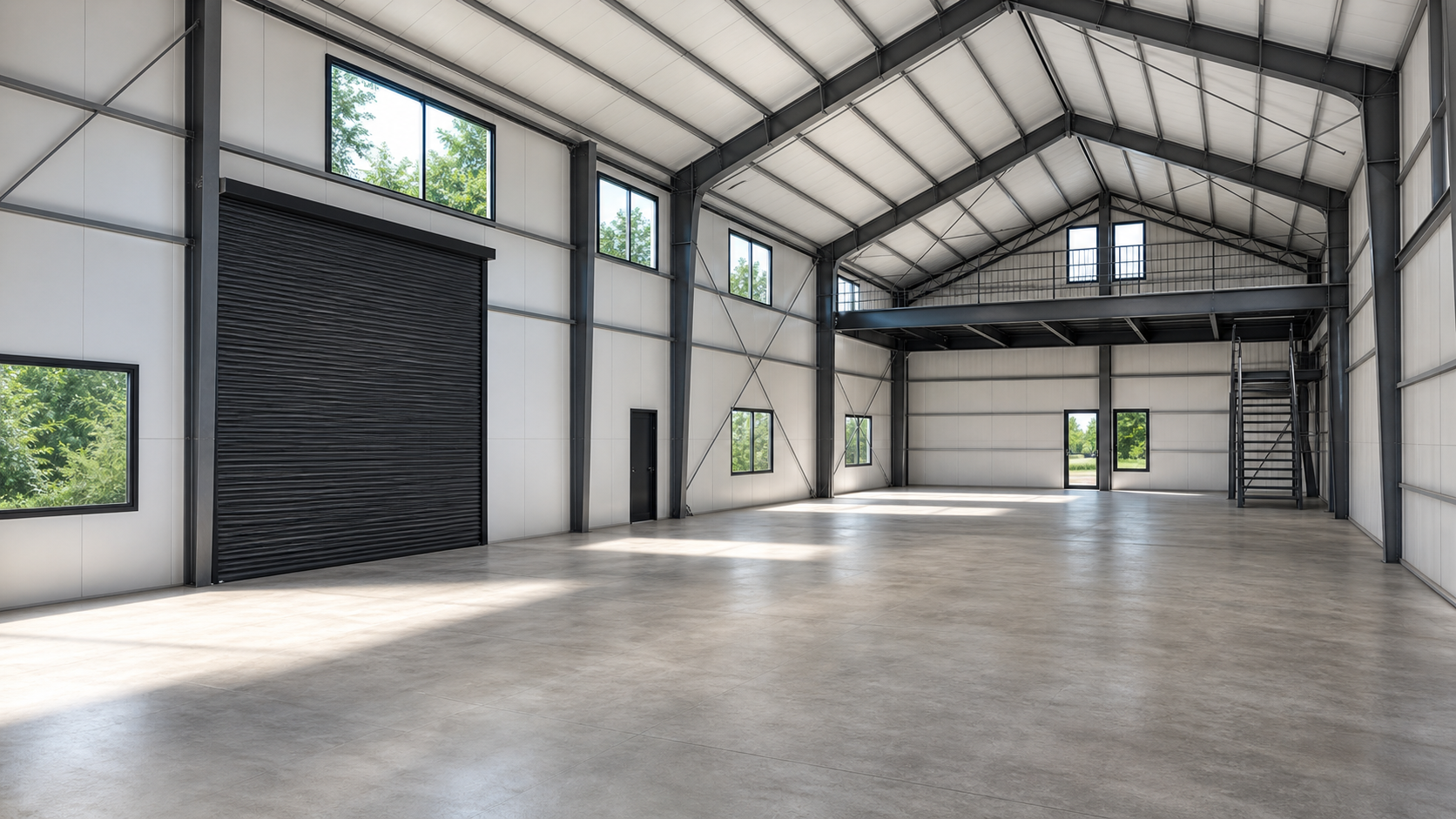

Mezzanine decking sheet integrated into the structural package
Severe snow-load capacity engineered for regional requirements
Painted primary frame with galvanised secondary members
Total area: 578 m²
Project Timeline
Design & Engineering
Environmental analysis, structural design, MEP coordination
Steel Fabrication
Precision fabrication with zero-defect welding
Shipping & Logistics
Sea freight to Long Beach port, USA
On-Site Erection
Steel erection, panel cladding, MEP integration
Project Gallery
View Full Size
View Full Size
View Full Size
View Full Size
View Full Size
Technical Specifications
Structural System
Portal Frame
Dimensions
27.5m × 21m × 6.5m
Floor Area
578 m²
Wall System
0.5mm PPGI single-skin steel sheet; tempered glass roof and wall areas; mezzanine decking sheet
Roof System
0.5mm PPGI single-skin steel sheet
Design Load
Wind Load 115 Mph, Snow Load 4.8 KN/m²
Primary Steel
Q355B (= S355JR / ASTM A572 Gr.50, Painted)
Secondary Steel
Q235B (= S235JR / ASTM A36, Galvanized)
Project Information
Location
USA
Building Type
Warehouse
Area
578 m²
Completion Year
2025
Industry
Warehouse & Logistics
