Warehouse & Logistics2025
Brazil, Storage Building, 9,180 m²
BrazilStorage Building9180 m²
Location
Brazil
Building Area
9180 m²
Industry
Warehouse & Logistics
Completion
2025
Project Overview
A large-scale, wide-span industrial storage building delivered as a turnkey export package to Brazil, built around a single-skin steel sheet envelope with glass-wool insulated roof and wall zones, region-specific wind engineering, and engineered for resilient long-term performance on site.
Project Highlights
Extra-long 180m industrial footprint for high-volume storage and material flow
Column-free clear-span zones coordinated for warehouse operations
Single-skin steel sheet envelope with glass-wool insulation
Integrated partition wall panel package for internal zoning
Wind-rated structural design for the local climate
Corrosion-protected secondary members with galvanised finishing
Total area: 9,180 m²
Project Timeline
Design & Engineering
Environmental analysis, structural design, MEP coordination
Steel Fabrication
Precision fabrication with zero-defect welding
Shipping & Logistics
Sea freight to Santos port, Brazil
On-Site Erection
Steel erection, panel cladding, MEP integration

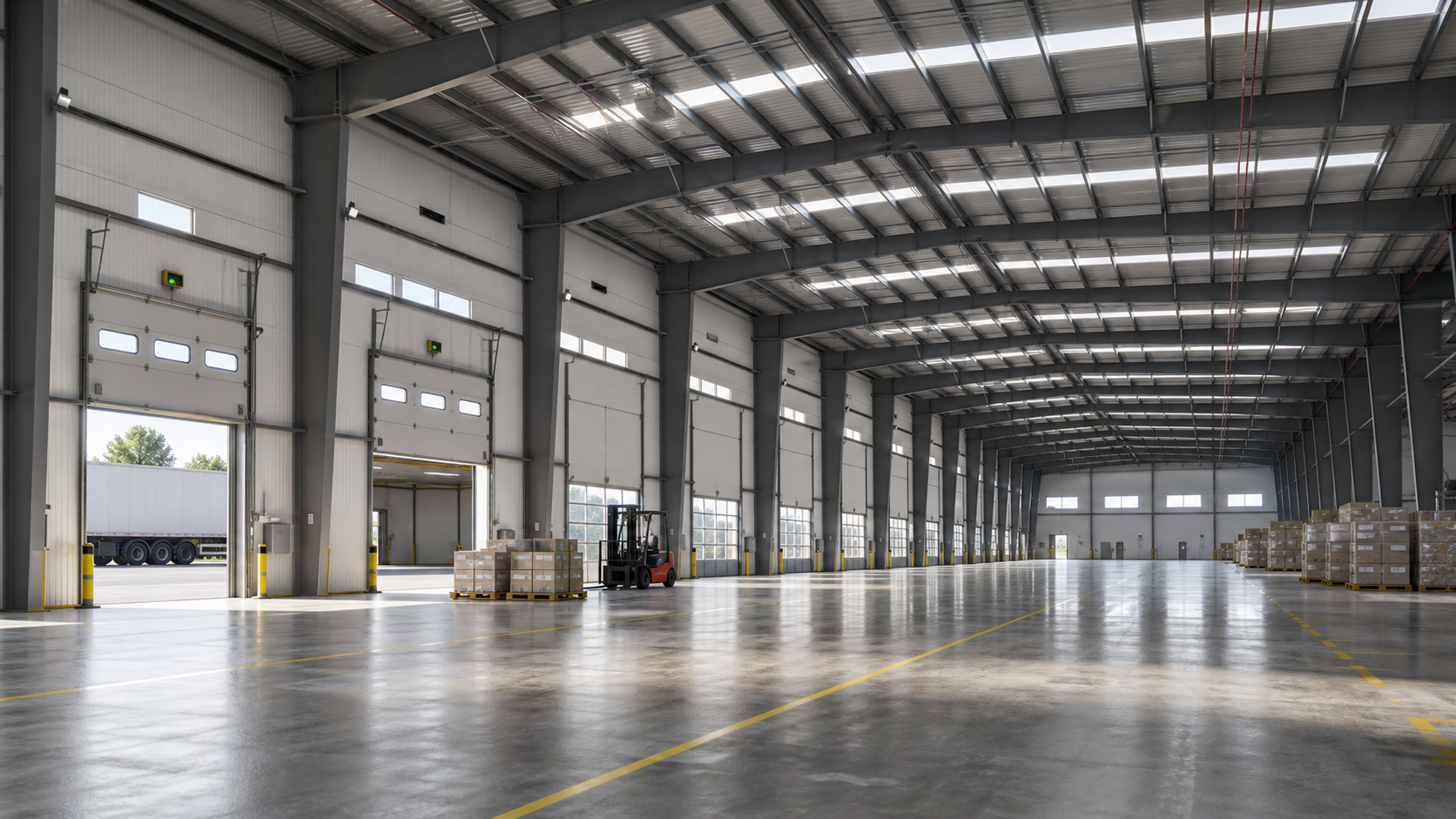

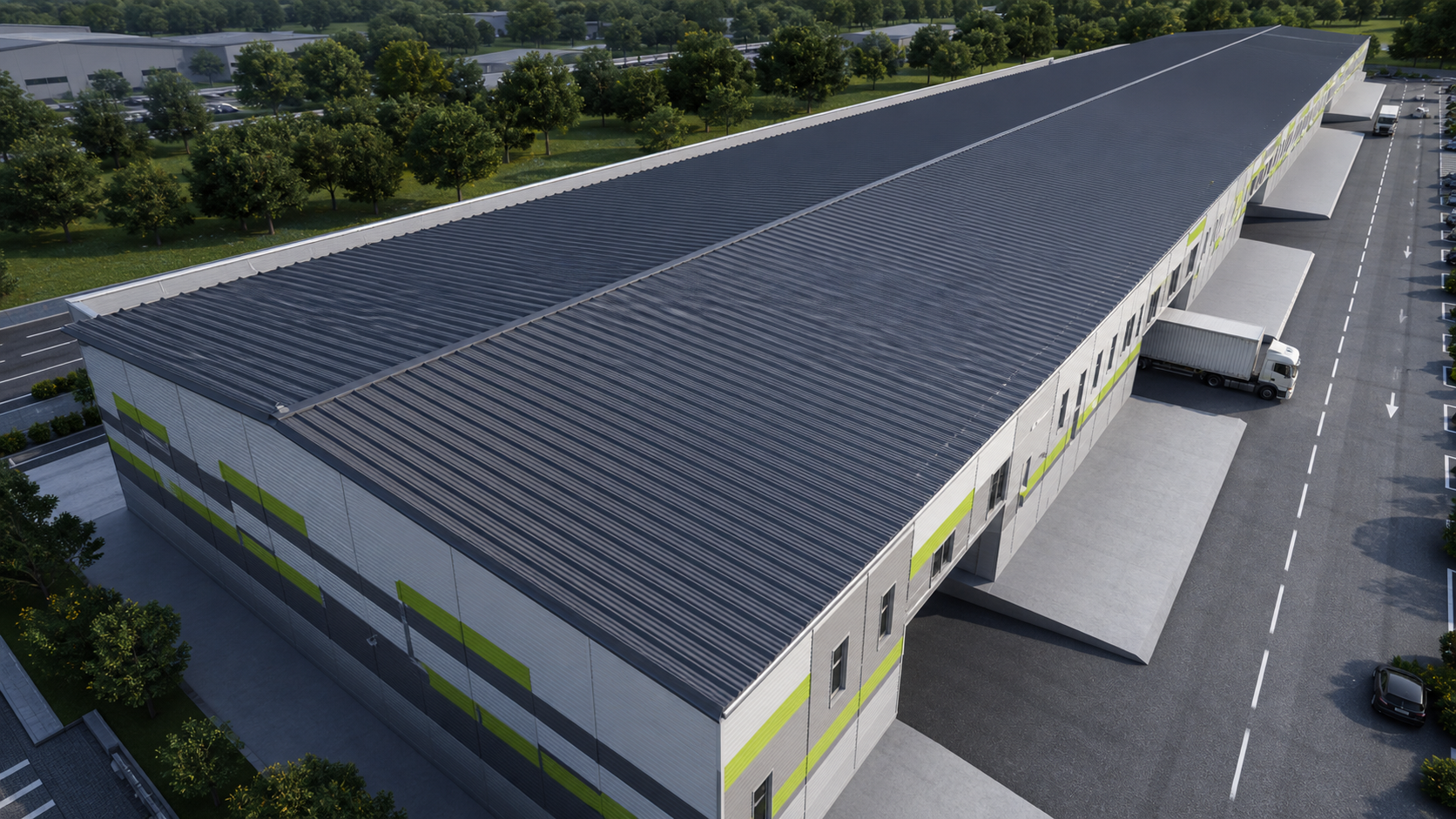

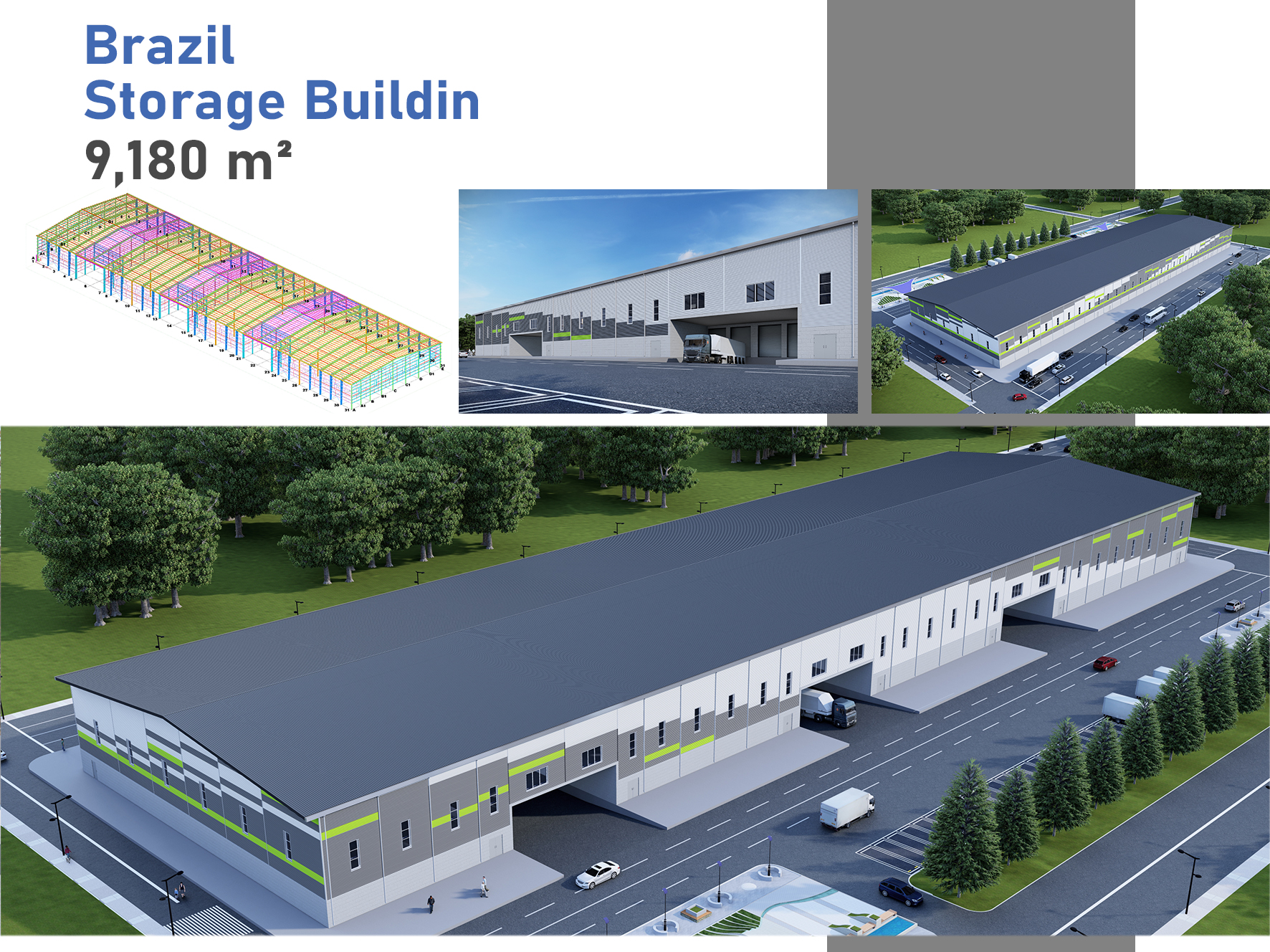

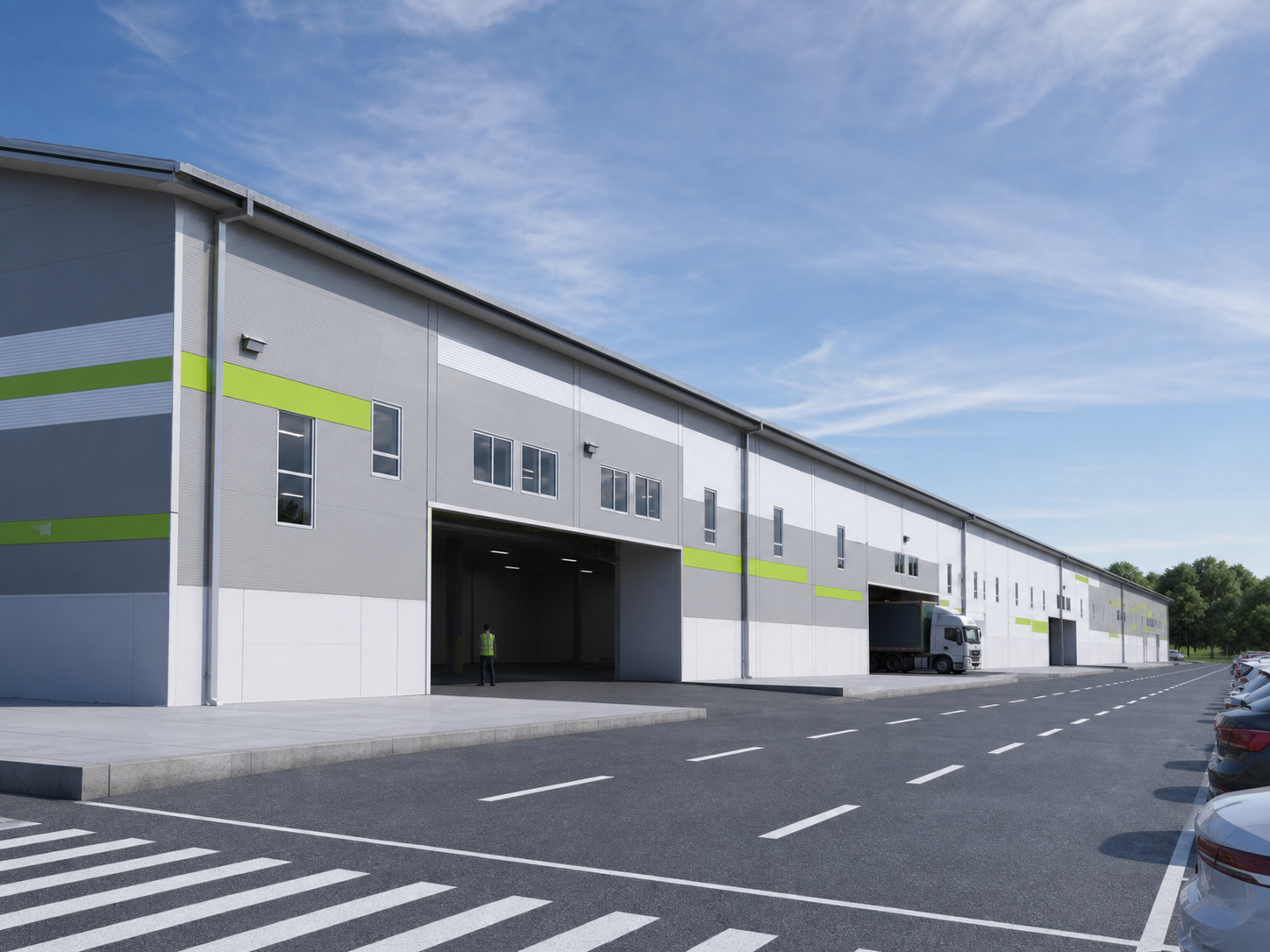

Project Gallery
View Full Size
View Full Size
View Full Size
View Full Size
View Full Size
Technical Specifications
Structural System
Portal Frame
Dimensions
180m × 51m × 11.8m
Floor Area
9,180 m²
Wall System
0.45mm PPGI single-skin steel sheet; 50mm glass wool insulation; 0.4mm PPGI partition wall panel
Roof System
0.45mm PPGI single-skin steel sheet + 50mm glass wool insulation
Design Load
Wind Load 100 Km/h (62 Mph), No Snow Load
Primary Steel
Q355B (= S355JR / ASTM A572 Gr.50, Painted)
Secondary Steel
Q235B (= S235JR / ASTM A36, Galvanized)
Project Information
Location
Brazil
Building Type
Storage Building
Area
9180 m²
Completion Year
2025
Industry
Warehouse & Logistics
