Location
Chile
Building Area
630 m²
Industry
Warehouse & Logistics
Completion
2025
Project Overview
A compact industrial warehouse delivered as a turnkey export package to Chile, built around an insulated sandwich-panel envelope with selected glass facade areas, region-specific wind engineering, and engineered for resilient long-term performance on site.
Project Highlights
Clear-span warehouse layout for flexible storage and service use
Insulated PU sandwich-panel roof and wall envelope
Glass curtain wall elements for improved daylight and frontage
Lightweight internal partition system for office or service zones
Wind-rated structural design for the local climate
Galvanised secondary members for long-term durability
Total area: 630 m²
Project Timeline
Design & Engineering
Environmental analysis, structural design, MEP coordination
Steel Fabrication
Precision fabrication with zero-defect welding
Shipping & Logistics
Sea freight to San Antonio port, Chile
On-Site Erection
Steel erection, panel cladding, MEP integration

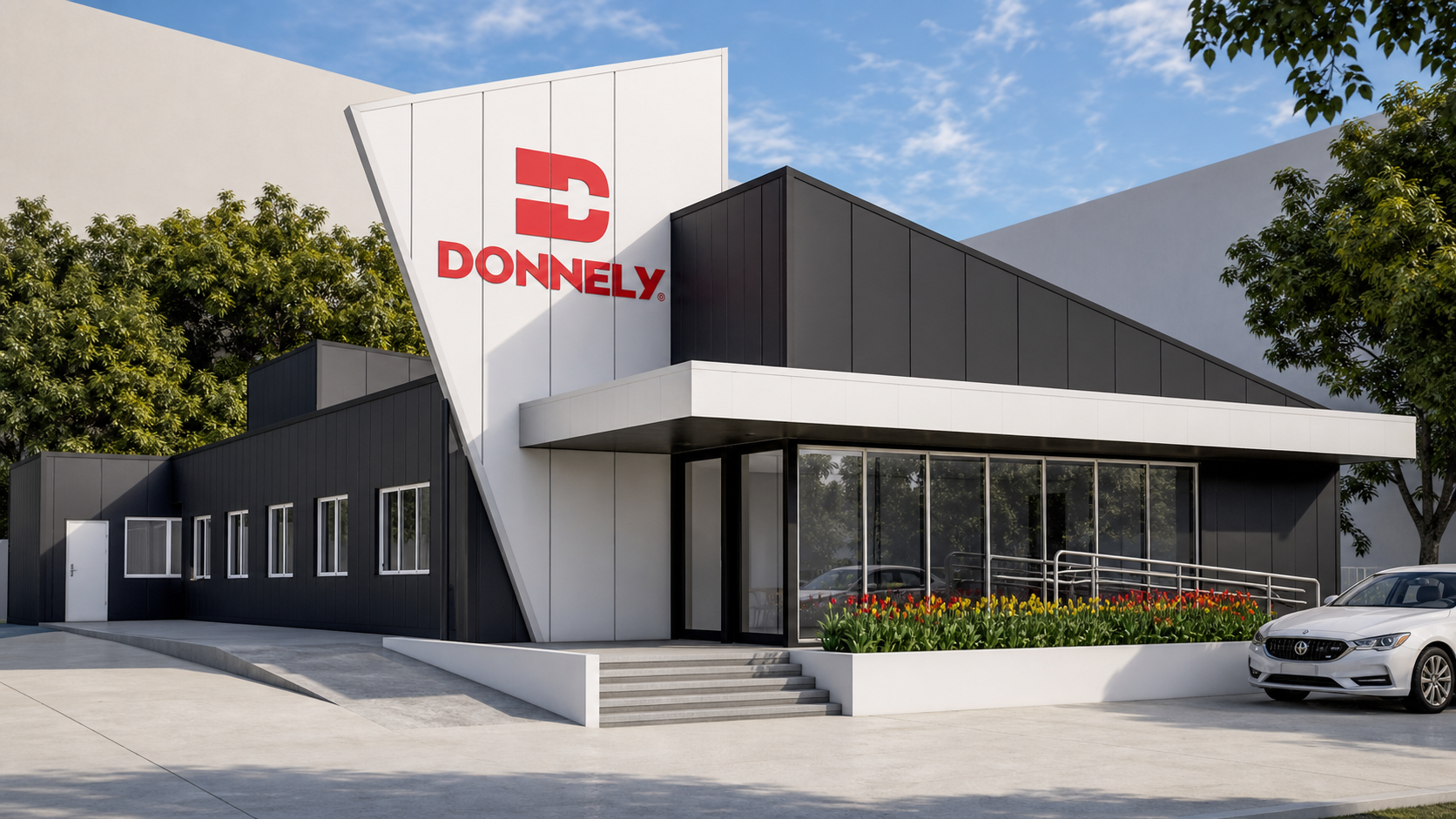

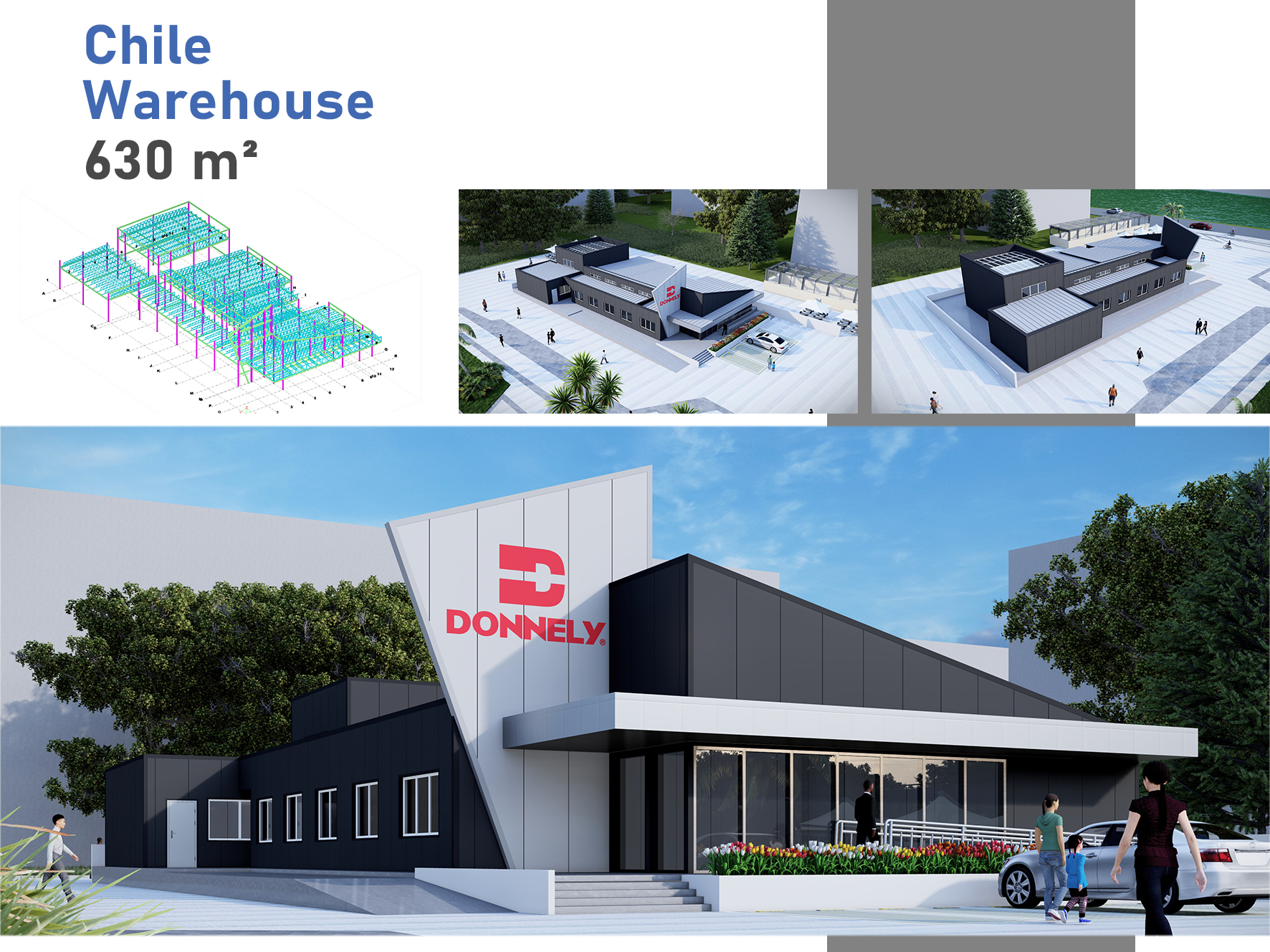

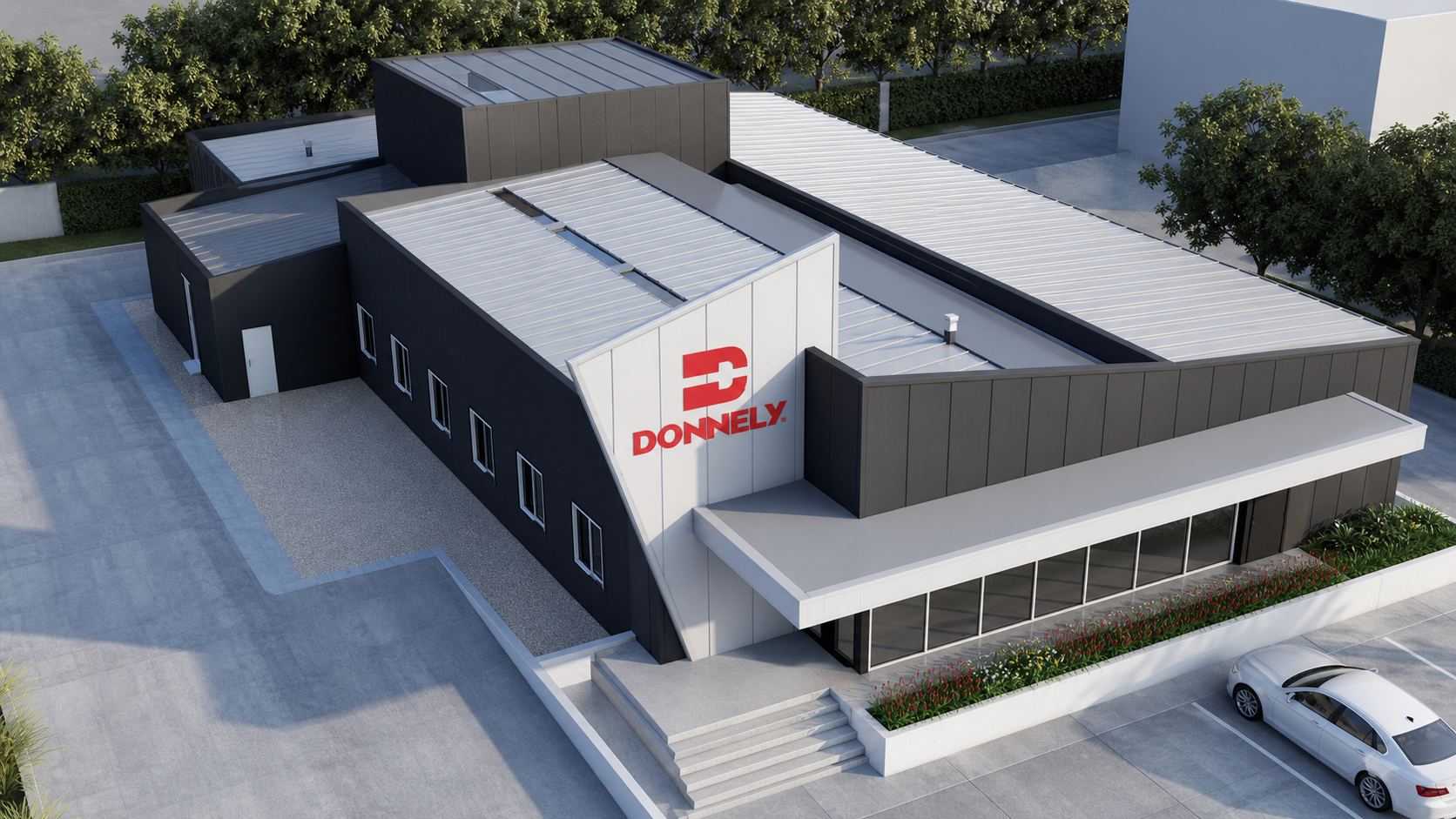

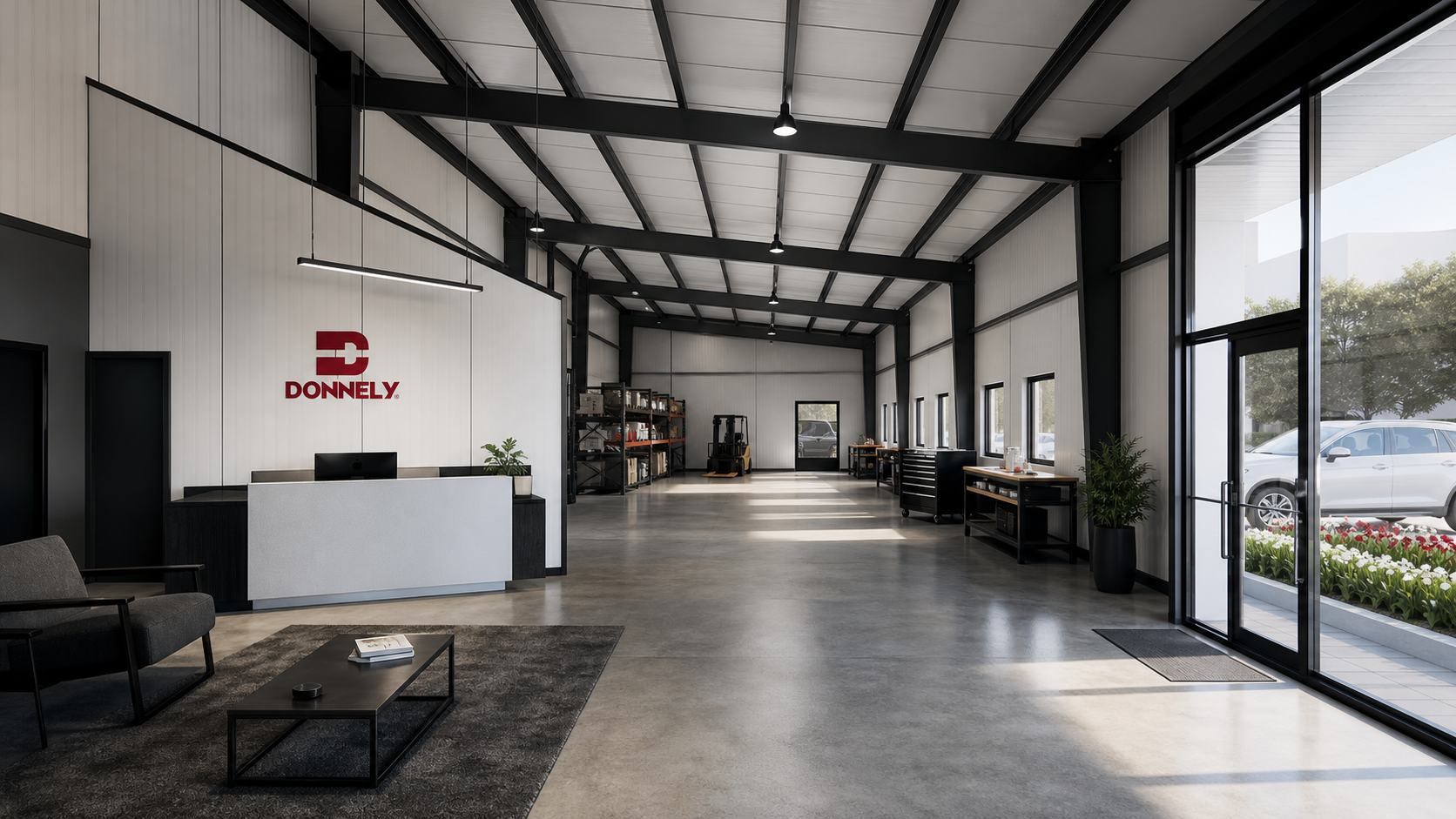

Project Gallery
View Full Size
View Full Size
View Full Size
View Full Size
View Full Size
Technical Specifications
Structural System
Portal Frame
Dimensions
18m × 35m × 9m
Floor Area
630 m²
Wall System
50mm PU sandwich panel (0.5mm PE steel sheet both sides); gypsum board partition wall; glass curtain wall
Roof System
50mm PU sandwich panel (0.5mm PE steel sheet both sides); local 0.5mm PPGI single-skin roof area
Design Load
Wind Speed 80 Km/h (50 Mph), No Snow Load
Primary Steel
Q355B (= S355JR / ASTM A572 Gr.50, Painted)
Secondary Steel
Q235B (= S235JR / ASTM A36, Galvanized)
Project Information
Location
Chile
Building Type
Warehouse
Area
630 m²
Completion Year
2025
Industry
Warehouse & Logistics
