Location
Colombia
Building Area
4090 m²
Industry
Warehouse & Logistics
Completion
2024
Project Overview
A wide-span, column-free clear-span industrial warehouse delivered as a turnkey export package to Colombia, built around a robust, weather-tight steel envelope featuring detallado coordinado por BIM, and engineered for resilient long-term performance on site.
Project Highlights
Overall dimensions: 67.35m × 61.5m × 12.5m
Column-free clear-span interior for unobstructed storage and material flow
Generous clear height engineered for racking and forklift operations
Weather-tight, durable building envelope
Wide access bays sized for industrial loading operations
Corrosion-protected steel members with galvanised or hot-dipped finishing
High-strength low-alloy structural steel framework (Q355B / ASTM A572 Gr.50)
Total area: 4090 m²
Project Timeline
Design & Engineering
Environmental analysis, structural design, MEP coordination, 3D Tekla BIM detailing
Steel Fabrication
Precision fabrication with zero-defect welding
Shipping & Logistics
Sea freight to Cartagena port, Colombia
On-Site Erection
Steel erection, panel cladding, MEP integration

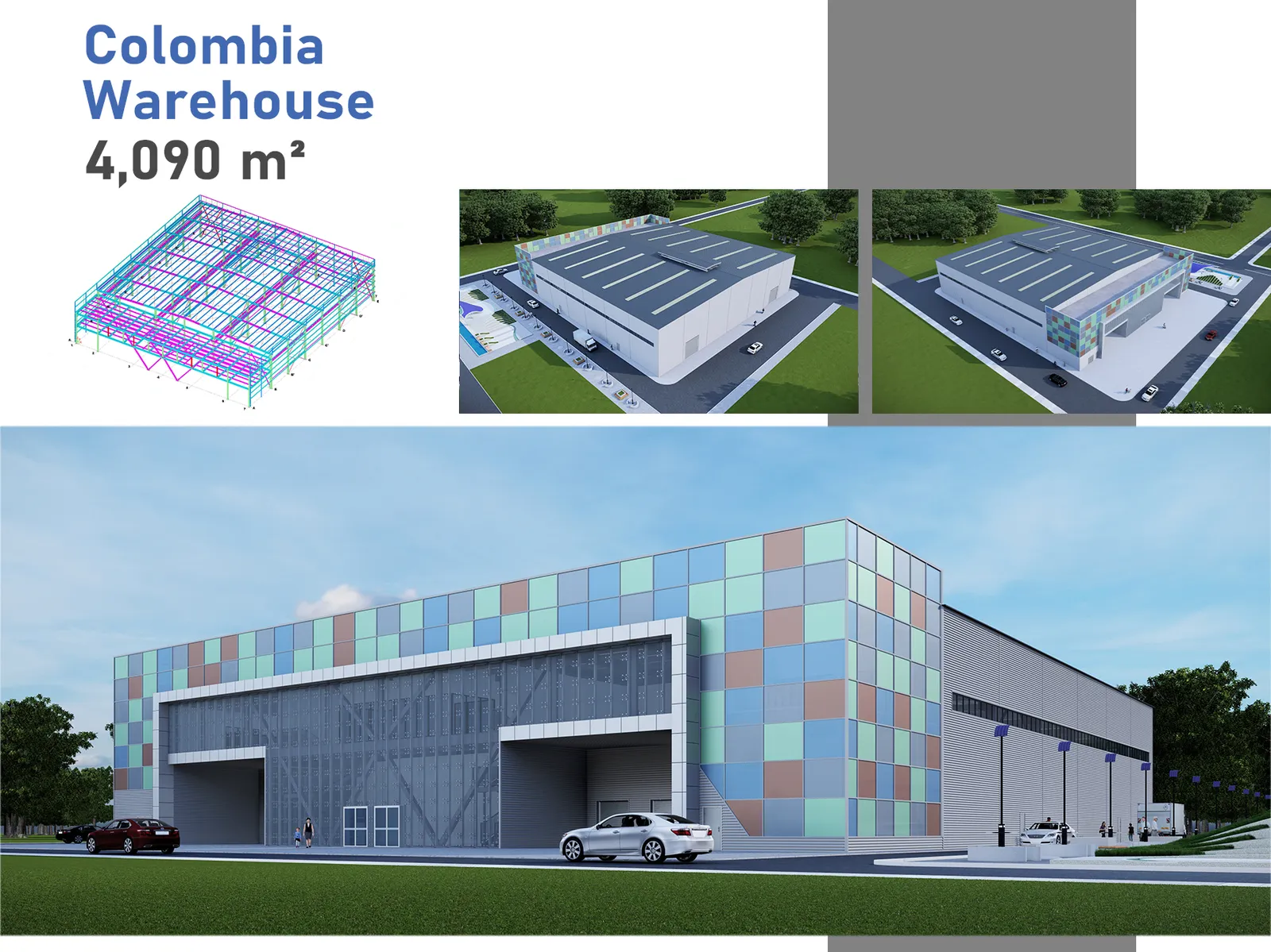

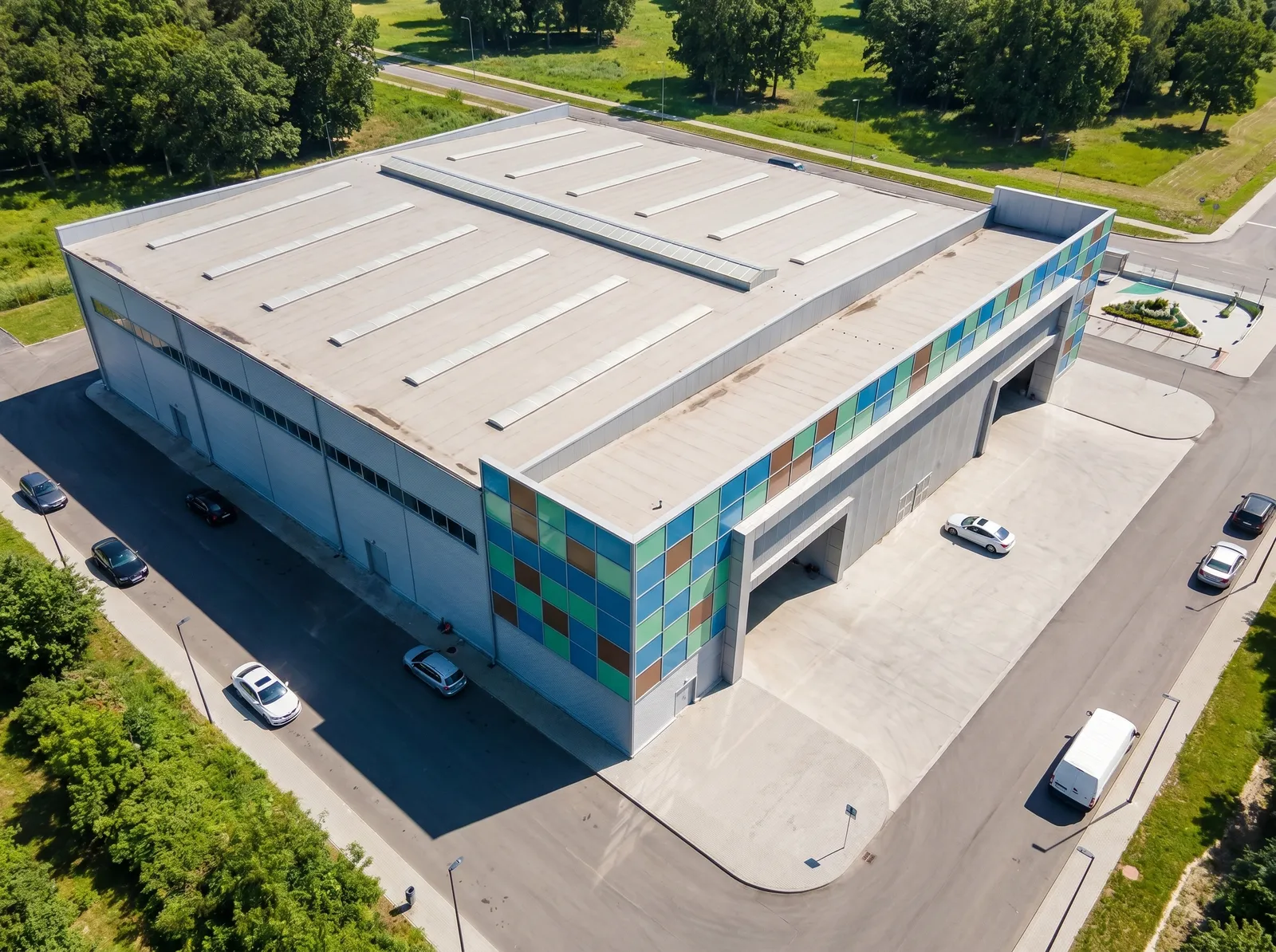

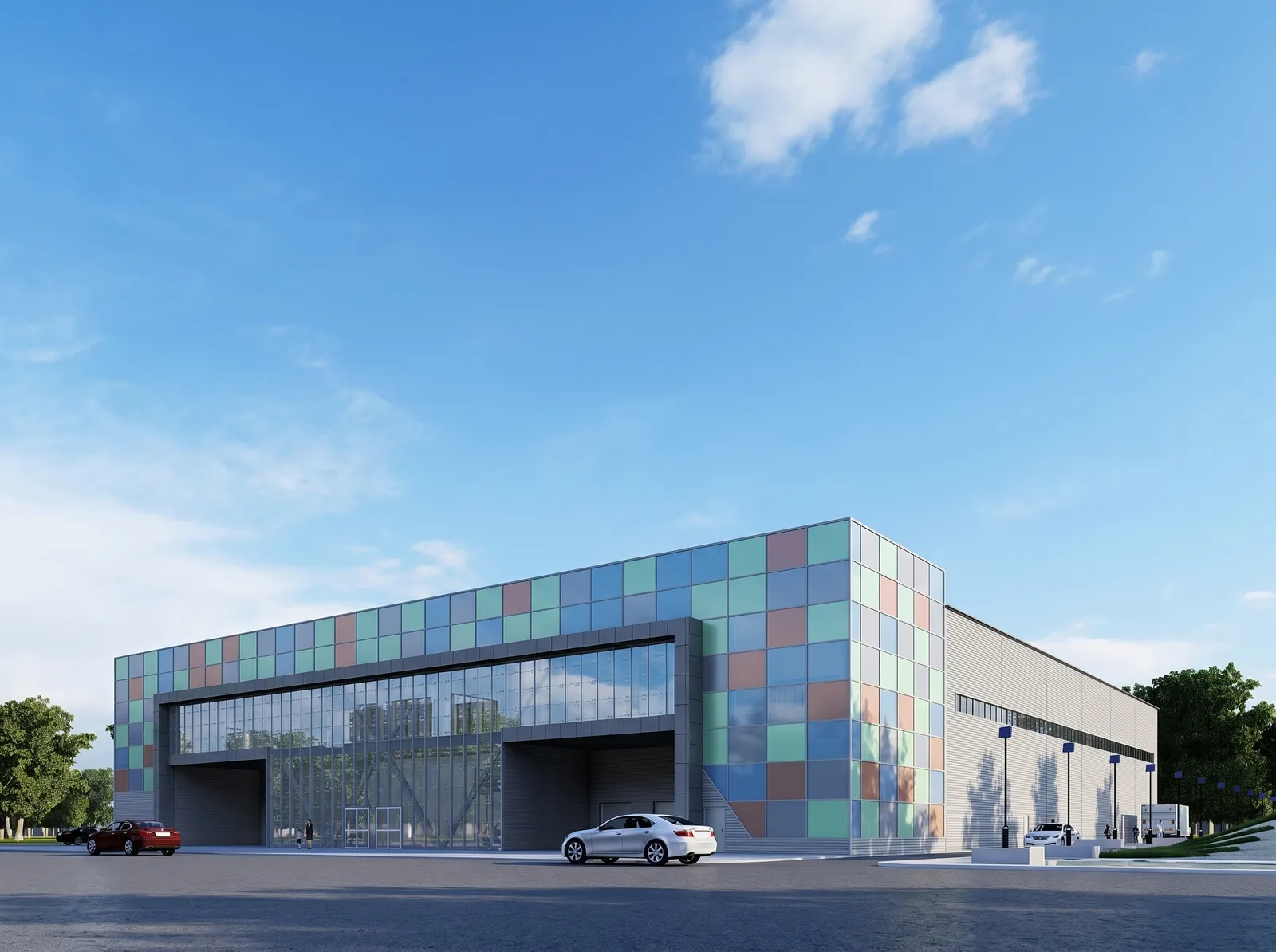

Project Gallery
View Full Size
View Full Size
View Full Size
Technical Specifications
Structural System
Portal Frame
Dimensions
67.35m × 61.5m × 12.5m
Wall System
0.5mm PE Single-skin Steel Sheet
Roof System
0.5mm PE Single-skin Steel Sheet
Design Load
Wind Load 37.3 Mph, No Snow Load
Primary Steel
Q355B (= S355JR / ASTM A572 Gr.50, Painted)
Secondary Steel
Q235B (= S235JR / ASTM A36, Galvanized)
Project Information
Location
Colombia
Building Type
Warehouse
Area
4090 m²
Completion Year
2024
Industry
Warehouse & Logistics
