Location
USA
Building Area
550 m²
Industry
Warehouse & Logistics
Completion
2024

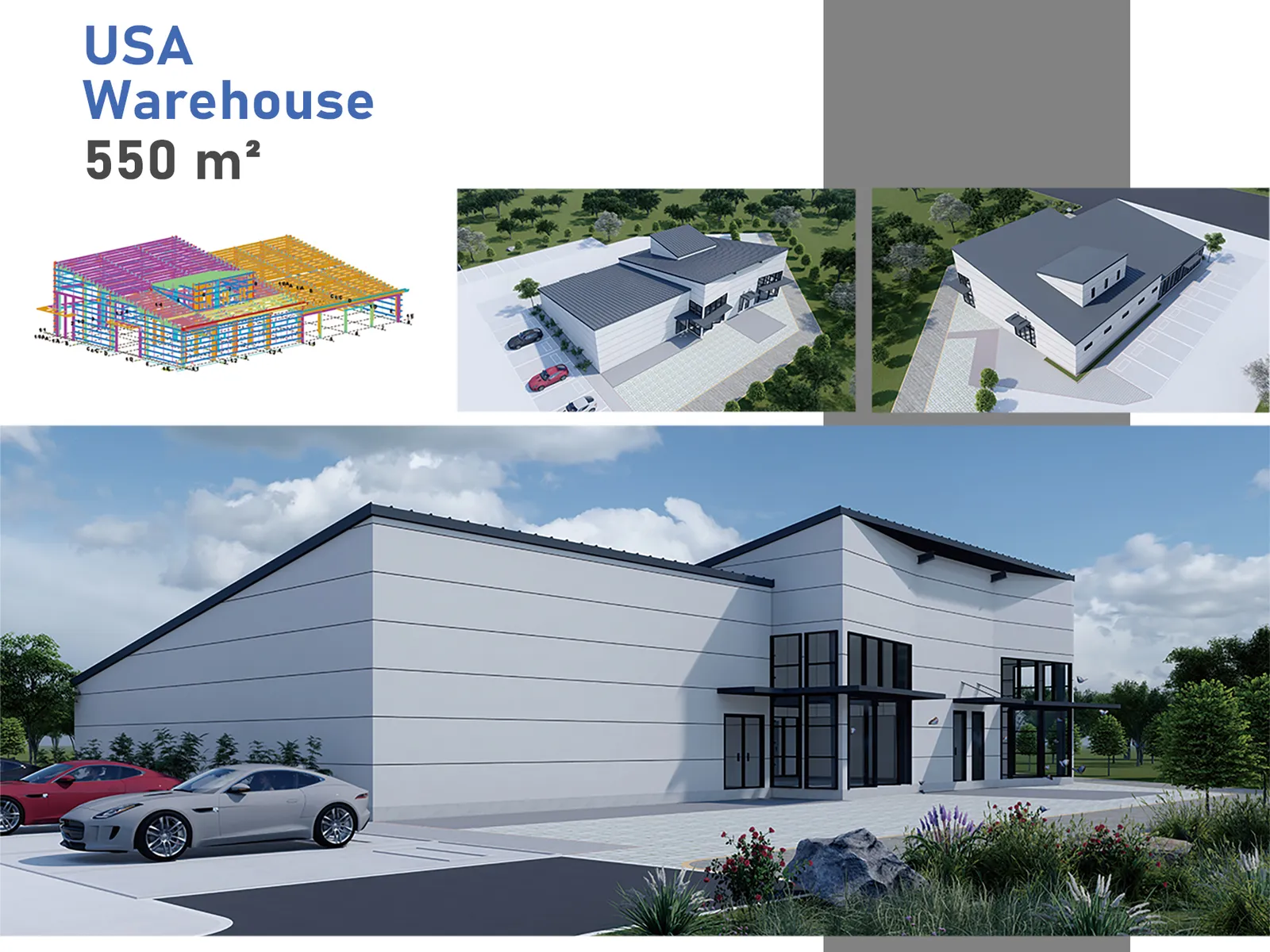

Project Overview
A wide-span, column-free clear-span industrial warehouse delivered as a turnkey export package to USA, built around a thermally insulated sandwich-panel envelope featuring ingeniería de viento específica para la región, and engineered for resilient long-term performance on site.
Project Highlights
Overall dimensions: 27.8m × 19.8m × 7.6m
Column-free clear-span interior for unobstructed storage and material flow
Generous clear height engineered for racking and forklift operations
Weather-tight, durable building envelope
Wide access bays sized for industrial loading operations
Severe-wind structural design tuned to typhoon-prone climates
Corrosion-protected steel members with galvanised or hot-dipped finishing
Total area: 550 m²
Project Timeline
Design & Engineering
Environmental analysis, structural design, MEP coordination
Steel Fabrication
Precision fabrication with zero-defect welding
Shipping & Logistics
Sea freight to Long Beach port, USA
On-Site Erection
Steel erection, panel cladding, MEP integration

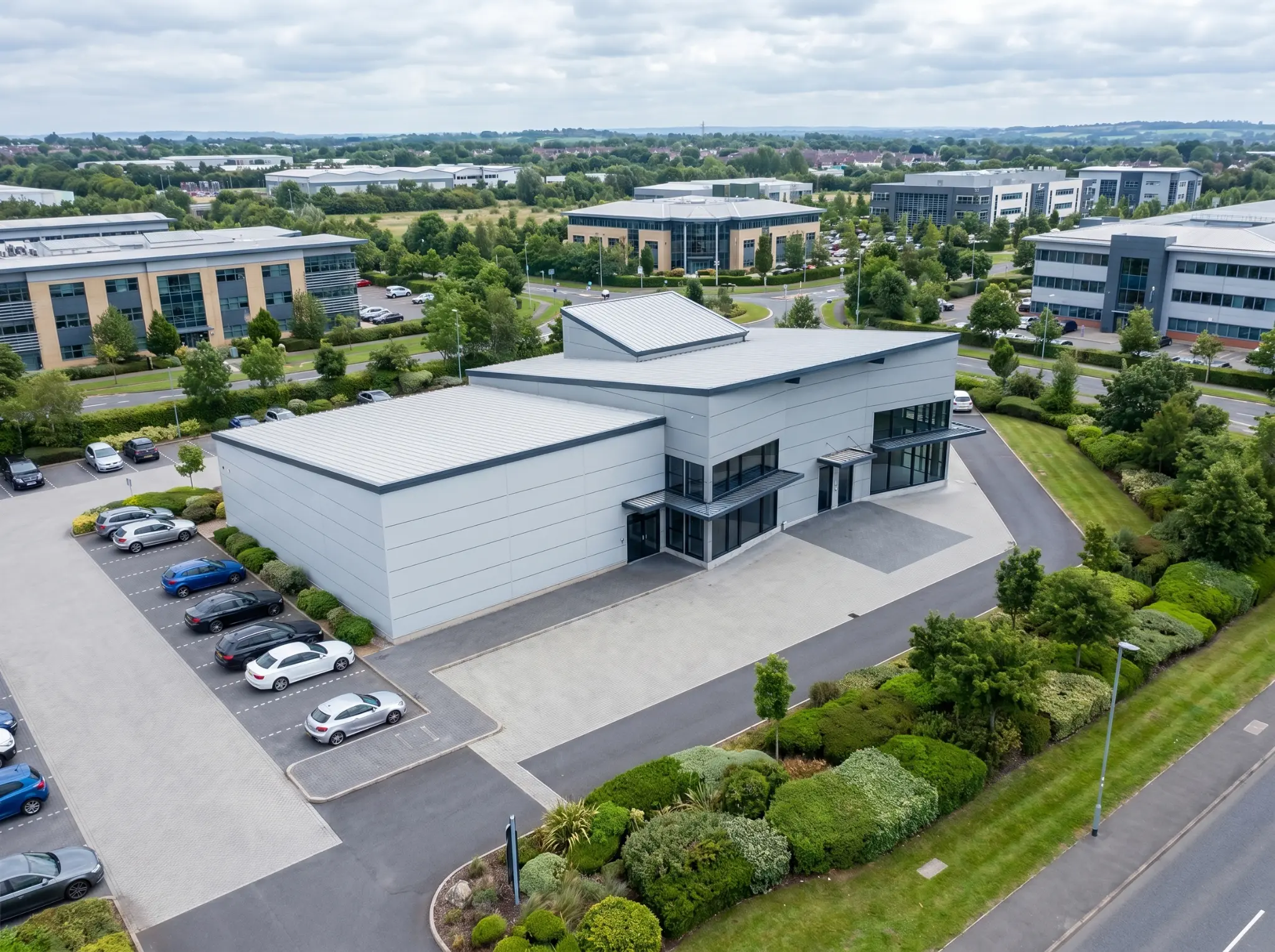

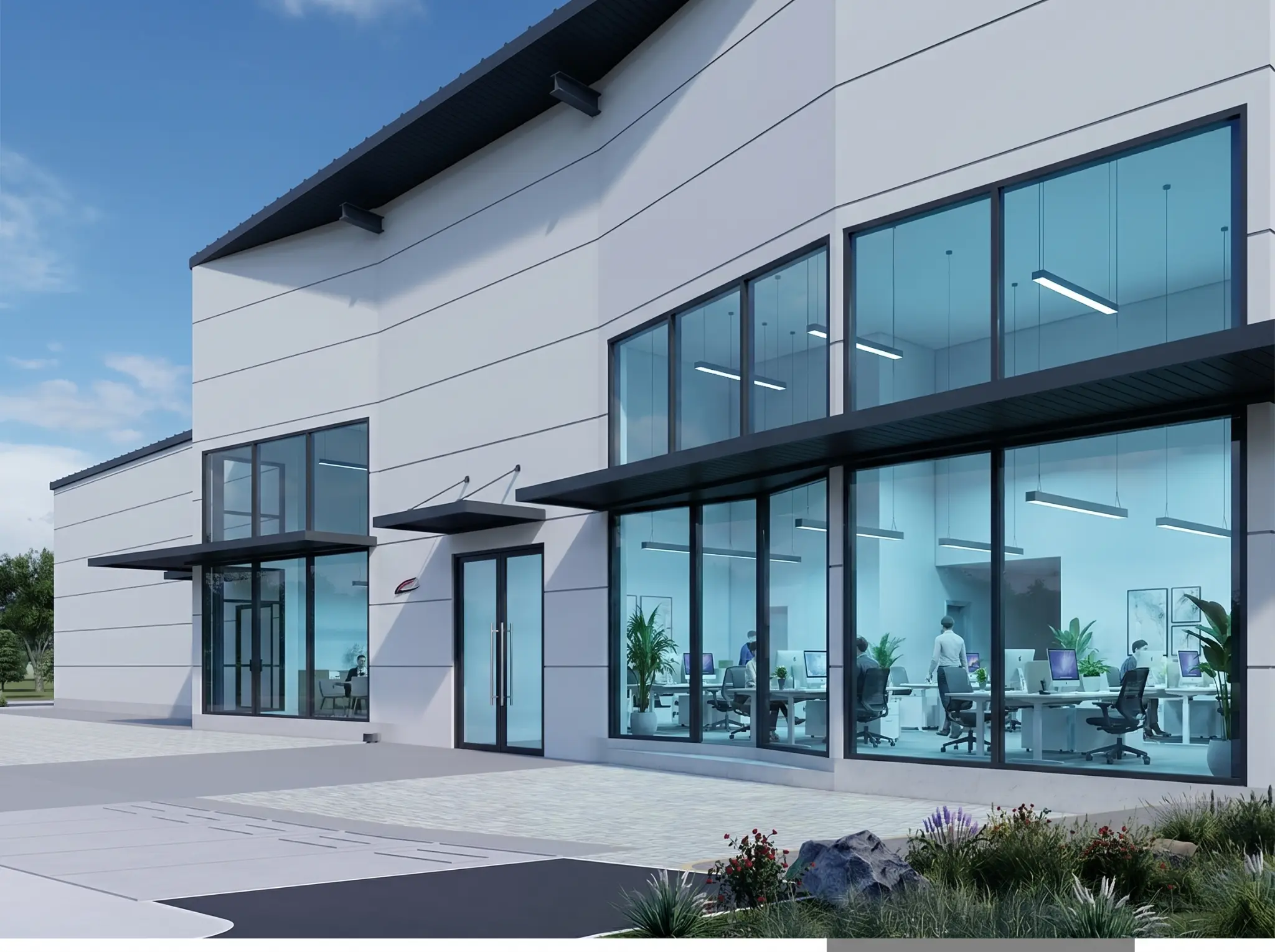

Project Gallery
View Full Size
View Full Size
View Full Size
Technical Specifications
Structural System
Portal Frame
Dimensions
27.8m × 19.8m × 7.6m
Wall System
50mm PU Sandwich Panel (0.5mm PE Steel Sheet)
Roof System
50mm PU Sandwich Panel (0.5mm PE Steel Sheet)
Design Load
Wind Load 141 Mph, No Snow Load
Primary Steel
Q355B (= S355JR / ASTM A572 Gr.50, Painted)
Secondary Steel
Q235B (= S235JR / ASTM A36, Galvanized)
Project Information
Location
USA
Building Type
Warehouse
Area
550 m²
Completion Year
2024
Industry
Warehouse & Logistics
